Adding links and formatting to Text

Markdown adds formatting and links to your text through a series of simple tags.  Tagging is supported in:

Collaborative Items

  • Annotations
  • Notes, including expert commentary (analysis)
  • Comments

Other text:

  • Sharing emails and notifications
  • Alert rules

Only the tags detailed below are supported in Metric Insights.  Other tags, such as those found here, are not supported.

1. Common Syntax

The following examples show the most commonly used markdown tags that are supported.

1.1. Basic formatting



For the following formatting, surround words with:

  • Italics:  A single asterisk \* or underscore \_ to *italicize* something.
  • Bold: Double asterisk \** or underscore \__ to **bold** something.
  • Bold/Italics: Triple asterisk \*** or underscore \___ to ___bold and italicize___ something.

NOTE: Be sure to there are no spaces between the symbols and the text they are highlighting and no carriage returns within the text.

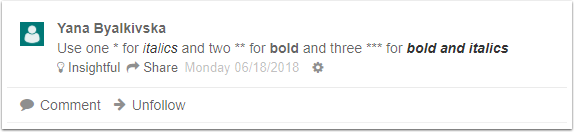

The following markdown code inserted, for example, in a Note, produces the formatted text as shown below:

Use one \* for *italics* and two \** for **bold** and three \*** for ***bold and italics***
Basic formatting

1.2. Special Characters

To include special characters, precede them with a backslash "\".   Only the special character itself, not the backslash, will show in the text.  More than one special character may follow a single backslash.

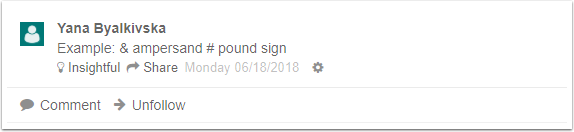

The following markdown code inserted, for example, in a Note, displays special characters as shown below:

Example\: & ampersand \# pound sign
Special Characters

1.3. Carriage Return

You must use two carriage returns to get a single carriage return as illustrated below

This comment has three lines
[blank space]
Line one
[blank space]
Line two
[blank space]



Carriage Return

2. Embedding links with friendly names

Links are made clickable by putting the desired text in brackets [text here] and enclosing the link in parenthesis (link here)

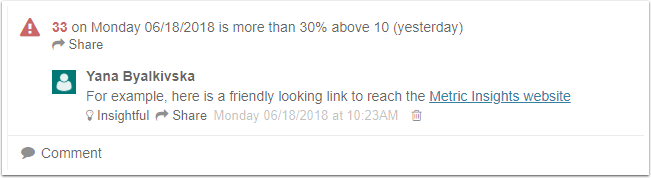

The following markdown code inserted, for example, in a Comment on an Alert, produces the active link as shown below:

For example, here is a friendly looking link to reach the [Metric Insights website](http://www.metricinsights.com)
Embedding links with friendly names

3. Text Blocks

Both "block quotes" and "code blocks" are supported

3.1. Block Quote

To create  a block quote, use a "carrot" on each line within the block.  When entering the text, double space between the lines preceded by the ">" to denote the start a new line

The following markdown code inserted, for example, in an Annotation, upon saving,  produces the Block Quote shown blow

For a Block Quote
 >start each line with a " >"
[blank space]
 >that will indent each line like it's quoted
[blank space]
 > be sure there is a blank line between your lines
[blank space]
 > or it will all run together
Block Quote

3.2. Code block

Use three tick marks ``` on a line before and on a line after the text to create a code block that is shaded in red and contains red text

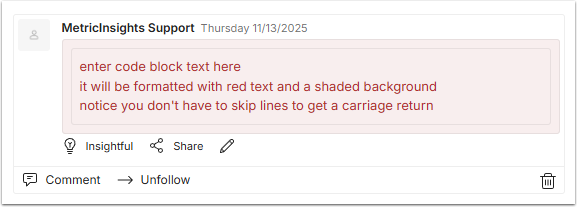

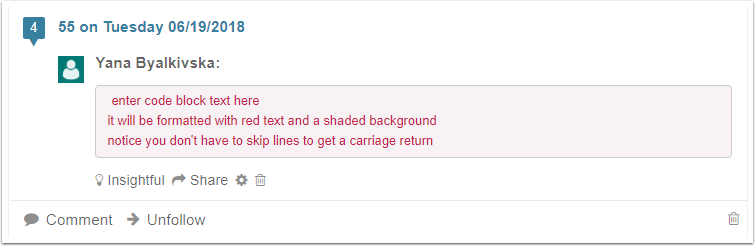

The following markdown code inserted, for example, in a Note produces the Code Block shown blow

```
enter code block text here
it will be formatted with red text and a shaded background
notice you don't have to skip lines to get a carriage return
```

4. Other tags

4.1. Lines

Lines, or horizontal rules are created by using three symbols together.

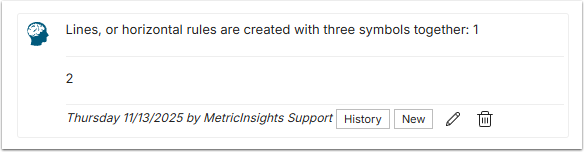

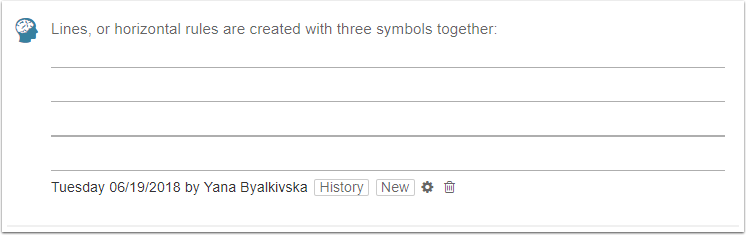

The following markdown code inserted, for example, in a Note, produces four lines as shown below:

Lines, or horizontal rules are created with three symbols together:
***
---
___
- - - -
Lines

4.2. Monospaced

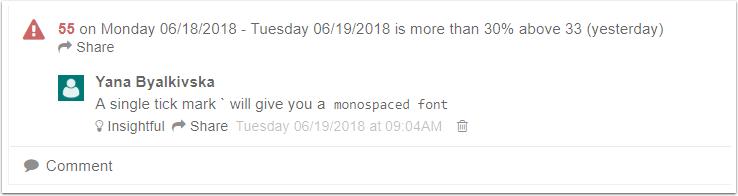

Use a single tick mark ` to produce a monospaced font

IMPORTANT:  Be sure to there are no spaces between the symbols and the text they are highlighting and no carriage returns within the text.

A single tick mark \` will give you a `monospaced font`
Monospaced
