Folder API

This article describes endpoints available for configuration of Folders and Folder Elements.

/api/folder: Retrieve, create, update, and delete Folders/Sub-Folders.
/api/folder_element: Retrieve, add, bulk add, and remove Elements from Folders.

Prerequisites:

Set up API access, verify that you have API access, and obtain a token via the get_token call OR
Generate Personal API Token

Table of contents:

Access Admin > System > API Toolkit
Configure Folder
Configure Folder Elements
Code Snippets
1. Folders Elements
  - Example Response
  - Fields Description

1. Access Admin > System > API Toolkit

2. Configure Folders

2.1. Get All Folders

GET request to /api/folder retrieves all Folders.

Item: folder
Method: GET
Enter an API Token
[Run request]

Example Response

{
  "folders": [
    {
      "user_id": 118,
      "category_id": 0,
      "favorite_id": 0,
      "folder_id": 241,
      "parent_category_id": 0,
      "parent_folder_id": null,
      "source_shared_favorite_id": null,
      "copied_from_favorite_id": null,
      "name": "Dashboard Element Test",
      "ancestors": "",
      "folder_ancestors": null,
      "type": "Folder",
      "shared_by": null,
      "source_propagate_display_order_changes_ind": "N",
      "sort_order_owner_id": null,
      "sort_order_modified_by_owner_ind": "N",
      "viewer_metadata": "Y",
      "favorite_content": null,
      "description": "",
      "is_edit_access_ind": "Y",
      "order_by": 1,
      "display_order": 1130000
    }
  ]
}

Fields Description

Field Name	Value Type	Description
`folders`	array	An array with all Folder data.
`user_id`	integer	The ID of the User who ran the API request.
`folder_id`	integer	The ID of the Folder.
`parent_folder_id`	integer	The ID of the parent Folder. Returns `null` if the folder is a top-level Folder.
`name`	string	The name of the Folder.
`folder_ancestors`	string	Comma-separated list of ancestor Folder IDs, ordered from the top-level folder down to the immediate parent. Returns `null` if the Folder has no parent Folders.
`description`	string	The description of the Folder.
`is_edit_access_ind`	string	Whether or not the User who ran the API request has edit access to the Folder. Takes value "Y" if the User has edit access, "N" - if not.
`display_order`	integer	The numeric value that determines the display order of the Folder on the homepage. Lower value = earlier in the list.

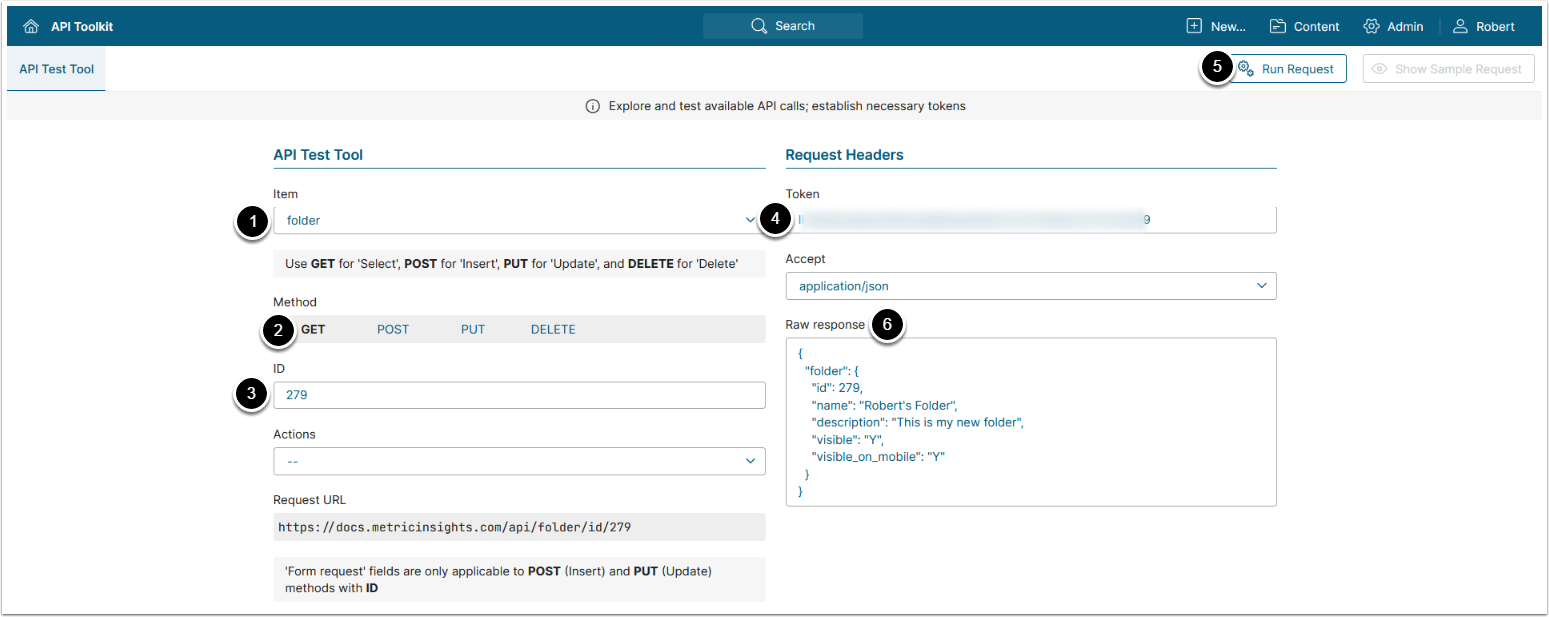

2.2. Get a Specified Folder

GET request to /api/folder/id/<ID> retrieves a specified Folder.

Item: folder
Methods: GET
Enter the ID of the Folder or Sub-Folder which data needs to be retrieved.
Enter an API Token
[Run request]
The returned object contains an object with Folder's data.
- See Example Response and Fields Description for details.

Example Response

{
  "folder": {
    "id": 279,
    "name": "Robert's Folder",
    "description": "This is my new folder",
    "visible": "Y",
    "visible_on_mobile": "Y",
    "include_in_export": "N"
  }
}

NOTE: For Sub-Folders, only id, parent_folder_id, and name are returned.

Fields Description

Field Name	Value Type	Description
`folder`	object	Object containing Folder information.
`id`	string	The ID of the Folder.
`name`	string	The name of the Folder.
`description`	string	The description of the Folder.
`visible`	string	Whether the Folder is displayed on the homepage. (`«Y/N»`)
`visible_on_mobile`	string	Whether the Folder is displayed in mobile app.(`«Y/N»`)

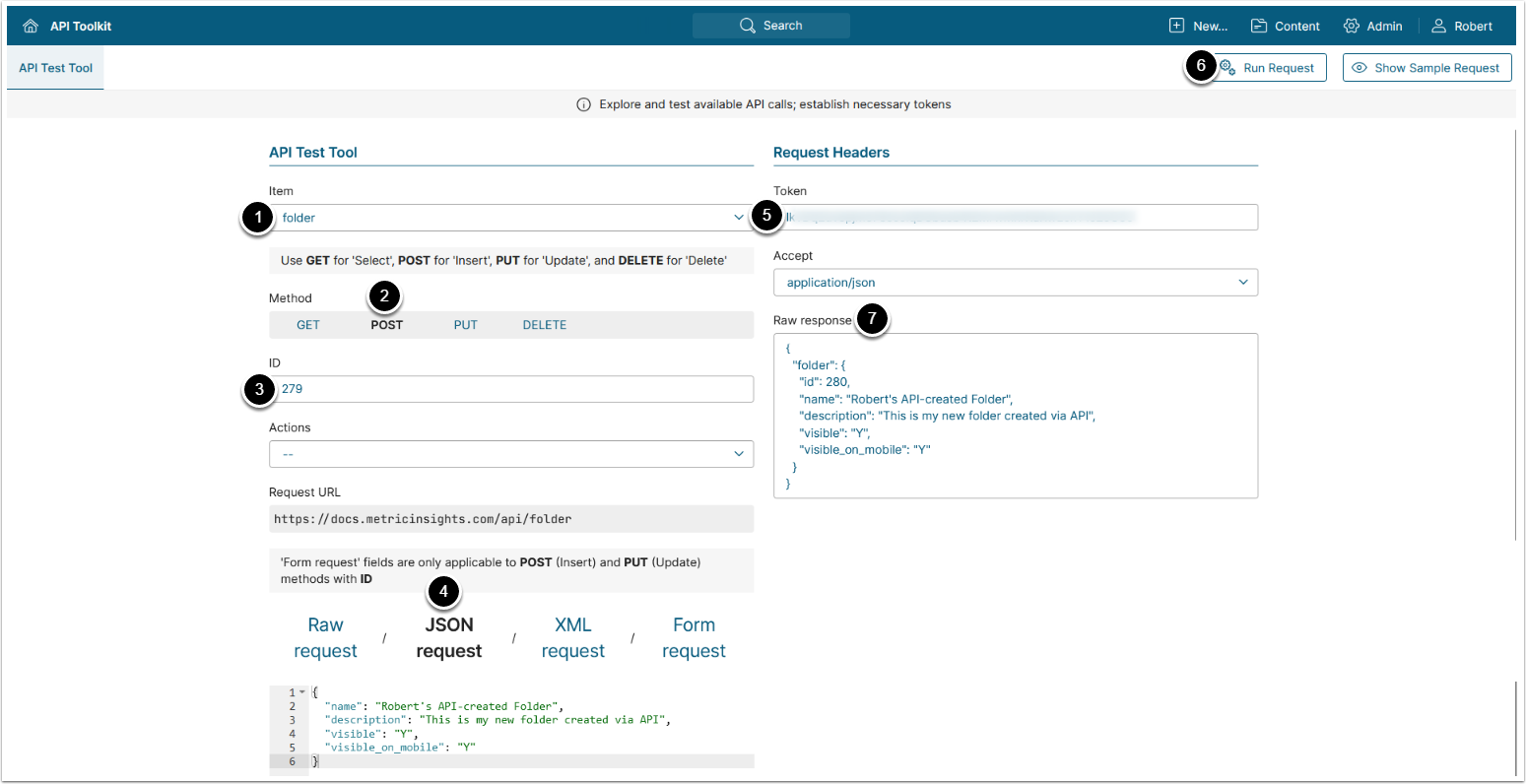

2.3. Create Folder

POST request to /api/folder with body {"name": "<name>", "visible": "<Y/N>", "visible_on_mobile": "<Y/N>"} creates a new Folder.

Item: folder
Methods: POST
Enter ID of an existing Folder
Select JSON request and enter JSON providing the needed values for your Folder. See Fields Description for details:

{
  "name": "<Folder_Name>",
  "visible": "<Y/N>",
  "visible_on_mobile": "<Y/N>",
  "include_in_export": "<Y/N>"
}

Enter an API Token
[Run request]
The returned object contains an object with Folder's data.
- See Example Response and Fields Description for details

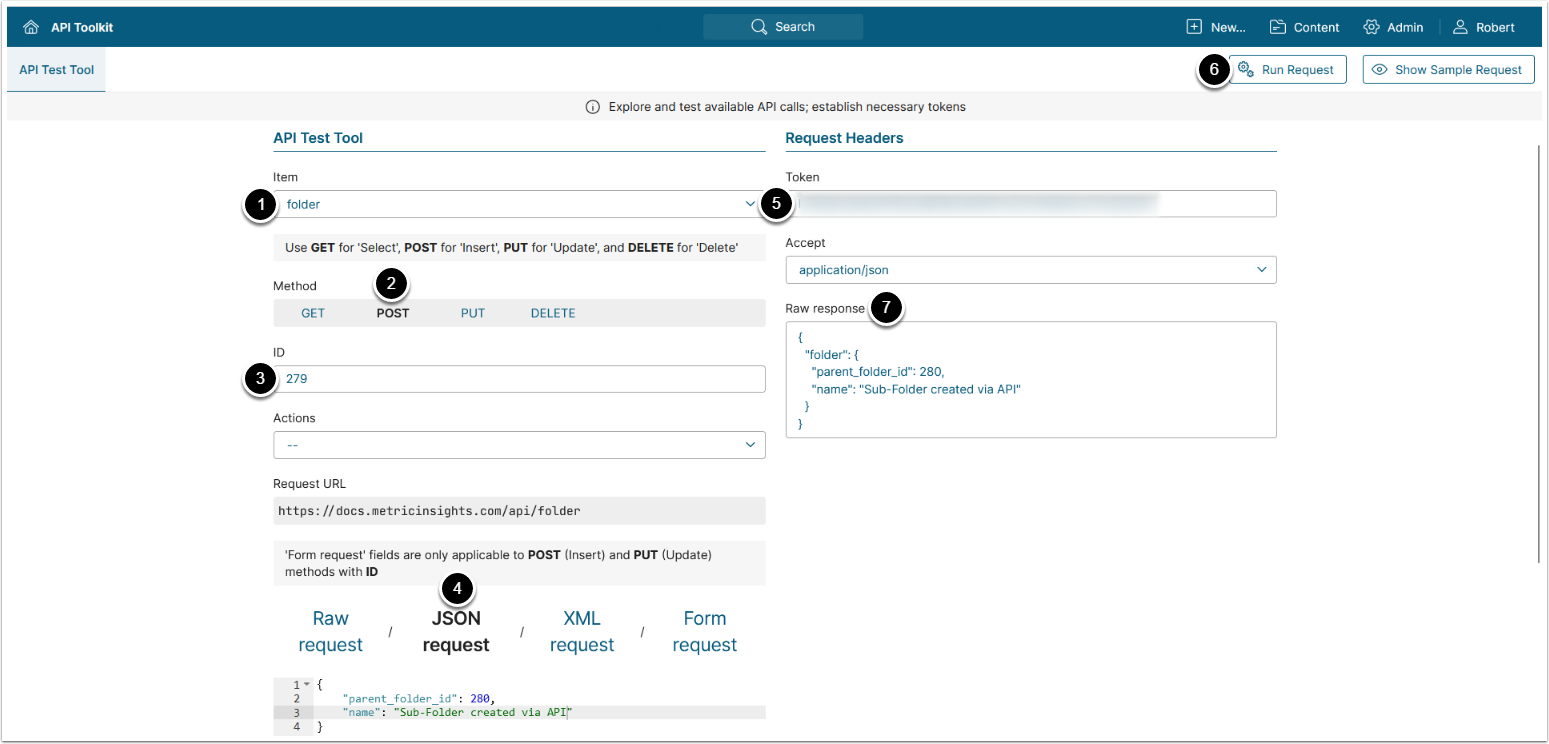

2.3.1. Create Sub-Folder

POST request to /api/folder with body {"parent_folder_id": "<ID>", "name": "<name>"} creates a new Sub-Folder.

Item: folder
Methods: POST
Enter ID of an existing Folder
Select JSON request and replace request with the following JSON providing the needed values:

{
    "parent_folder_id": <Parent Folder ID>,
    "name": "<Sub-Folder name>"
}

Enter an API Token
[Run request]
The returned object contains an object with Sub-Folder's data.

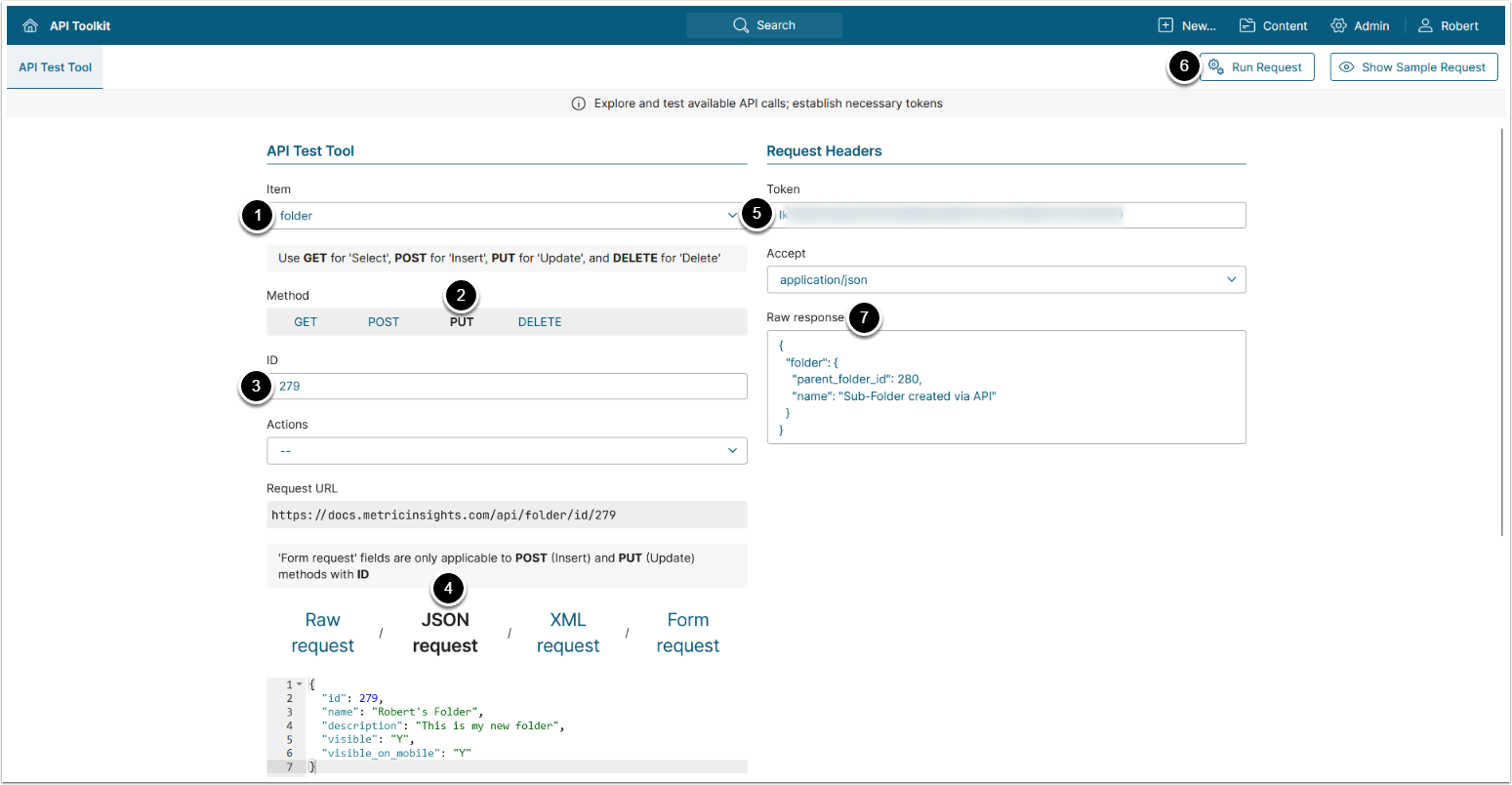

2.4. Update Folder

PUT request to /api/folder with body {"name": "<name>", "visible": "<Y/N>", "visible_on_mobile": "<Y/N>"} updates an existing Folder.

Item: folder
Methods: PUT
Enter ID of the Folder which data needs to be updated
Select JSON request and enter JSON with the updated Folder's data:
- See Example Response for details on Folder's data
Enter an API Token
[Run request]
The returned object contains an array with an object with the updated Folder's data.
- See Example Response and Fields Description for details

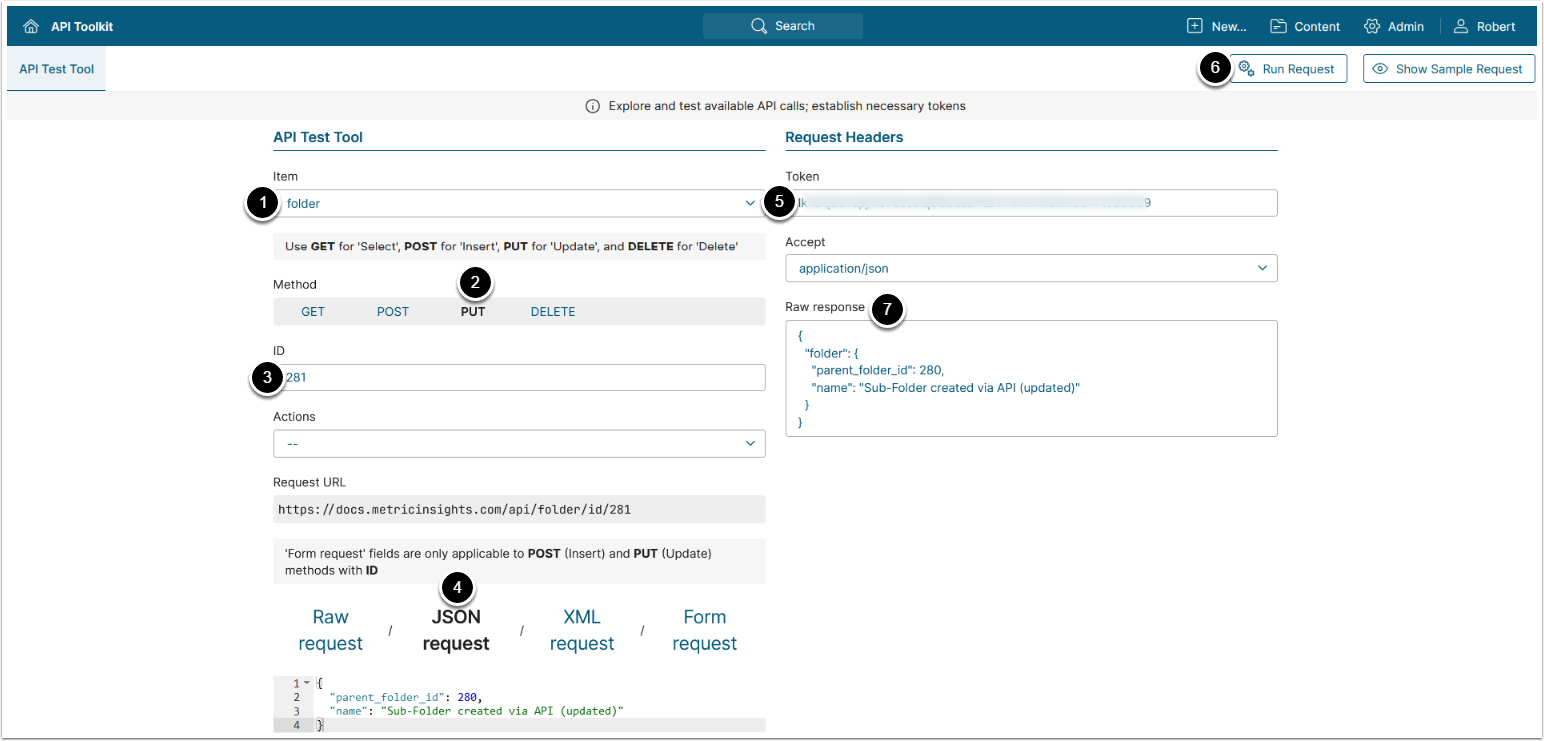

2.4.1. Update Sub-Folder

PUT request to /api/folder with body {"parent_folder_id": "<ID>", "name": "<name>"} updates an existing Sub-Folder.

Item: folder
Methods: PUT
Enter ID of the Sub-Folder which data needs to be updated
Select JSON request and replace request with the following JSON providing the needed values:

{
    "parent_folder_id": <Parent Folder ID>,
    "name": "<Sub-Folder Name>"
}

Enter an API Token
[Run request]
The returned object contains an array with an object with the updated Folder's data.

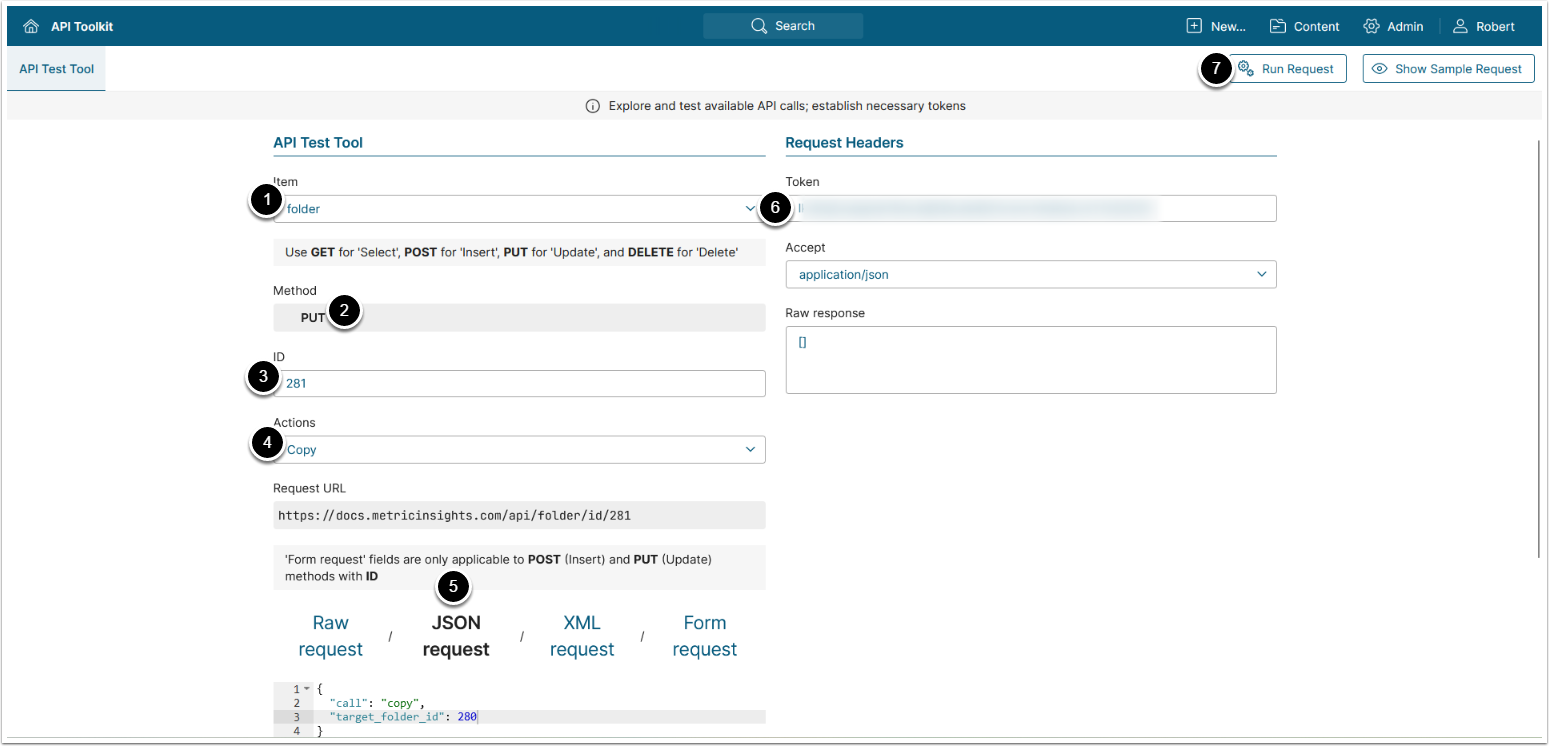

2.4.2. Copy Or Move Folder Or Sub-Folder

PUT request to /api/folder with body {"call": "copy", "target_folder_id": "<ID>"} creates a copy of the specified Folder inside of the target Folder.
PUT request to /api/folder with body {"call": "move", "target_folder_id": "<ID>"} moves the specified Folder inside the target Folder.

Item: folder
Method: PUT
Enter ID of the Folder or Sub-Folder which needs to be copied or moved
Actions:
- Copy: A copy of the selected Folder is created inside of the target Folder.
- Move: Selected Folder is moved inside the target Folder.
Select JSON request and assign target_folder_id the ID of the target Folder
Enter an API Token
[Run request]

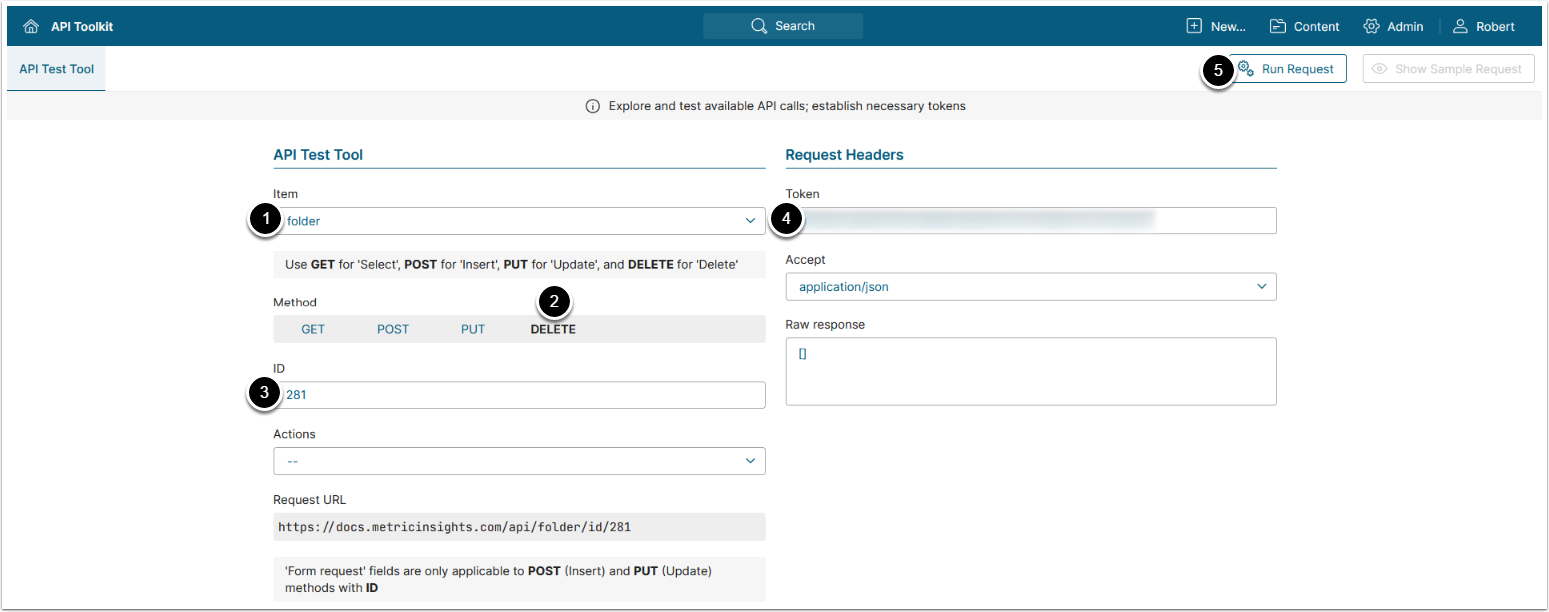

2.5. Delete Folder Or Sub-Folder

POST request to /api/folder/id/<ID> deletes the specified Folder or Sub-Folder.

Item: folder
Methods: DELETE
Enter ID of the Folder or Sub-Folder which needs to deleted
Enter an API Token
[Run request]

3. Configure Folder Elements

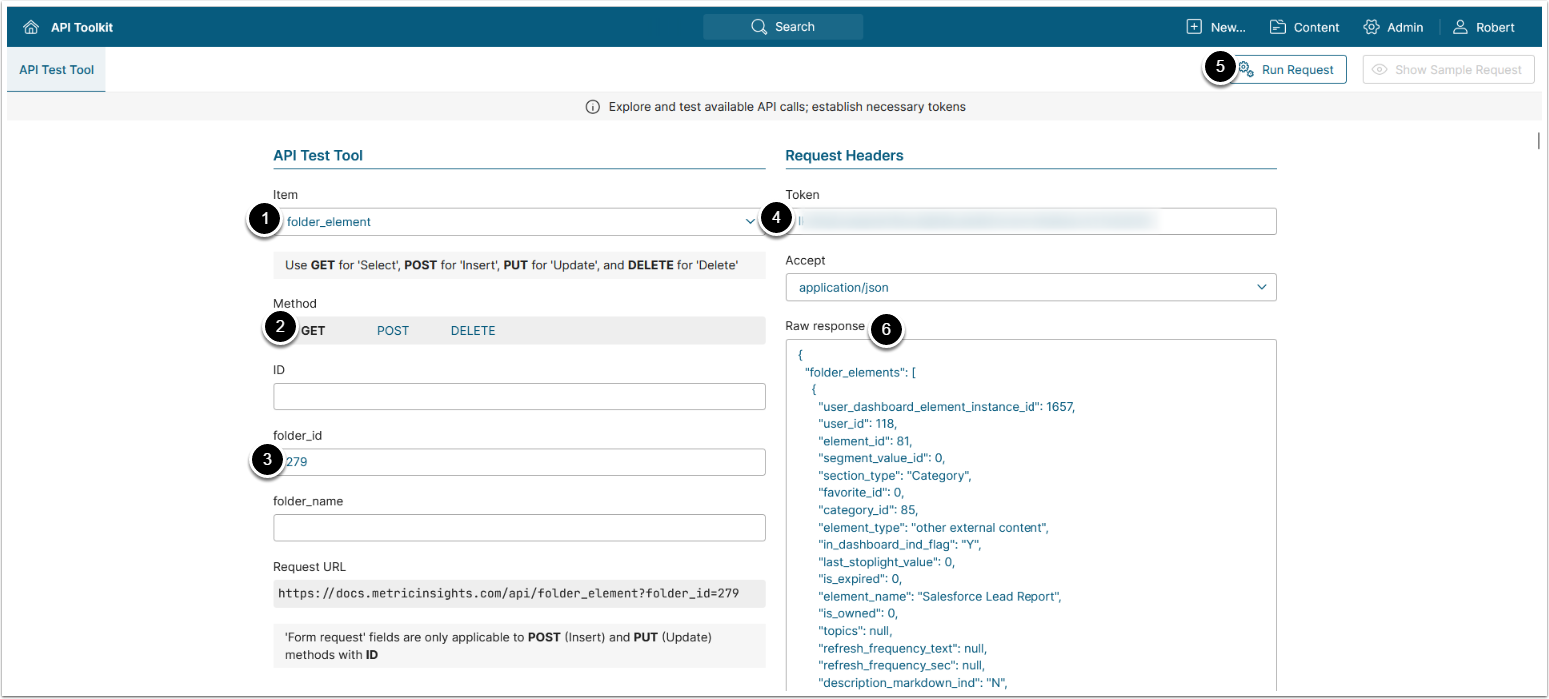

3.1. Get Folder Elements

Note: Beginning v6.4.3, this API request returns only Elements that are placed in the Folder, without Elements with Discoverability.

Item: folder_element
Methods: GET
Use one of the following parameters to retrieve Folder's data:
- folder_id: Enter Folder ID
- folder_name: Enter Folder Name
Enter an API Token
[Run request]
The returned object contains an object with Folder elements' data.
See Example Response and Fields Description for details.

Example Response

{
  "folder_elements": [
    {
      "user_dashboard_element_instance_id": 311,
      "user_id": 192,
      "element_id": 1279,
      "segment_value_id": 0,
      "section_type": "Favorite",
      "favorite_id": 532,
      "category_id": 0,
      "element_type": "external report",
      "in_dashboard_ind_flag": "Y",
      "last_stoplight_value": 0,
      "is_expired": 1,
      "element_name": "Tableau Worldwide Sales Analysis",
      "is_owned": 0,
      "topics": "101,177",
      "refresh_frequency_text": "Daily",
      "refresh_frequency_sec": 86400,
      "description_markdown_ind": "N",
      "element_info": "Daily sales data in Tableau, updated at 3am PST",
      "metric_unit_of_measure": null,
      "last_measurement_time": null,
      "external_report_download_url_info": "",
      "certified_ind": "Y",
      "certification_level_id": 1,
      "last_certified_time": "2021-10-13 23:06:07",
      "metric_display_on_tile": "value",
      "metric_moving_average_interval": null,
      "metric_display_on_tile_prefix": null,
      "metric_home_page_compare_value_type": "last value",
      "metric_home_page_compare_line_id": null,
      "metric_home_page_compare_target_id": null,
      "report_single_unit_label": null,
      "report_multiple_units_label": null,
      "report_no_units_label": null,
      "report_on_demand_generation_ind": "Y",
      "external_report_display": "iframe",
      "external_report_url": "https://tableau-prod.metricinsights.com/t/MI-Demo/views/SalesAnalysis/SalesAnalysis",
      "publicly_visible_ind": "Y",
      "certification_level_name": "Bronze",
      "certification_level_color": "#cd7f32",
      "last_certified_by_name": "Anna Kennedy",
      "last_certified_by_email": "bk@metricinsights.com",
      "business_owner": "Grayson Stebbins",
      "business_owner_email": "grayson@metricinsights.com",
      "data_steward": null,
      "data_steward_email": null,
      "technical_owner": "Grayson Stebbins",
      "technical_owner_email": "grayson@metricinsights.com",
      "data_source_name": "Tableau - Prod_MI-Demo",
      "supports_last_refreshed_check": "none",
      "display_order": 1,
      "total_view_count": null,
      "in_favorites": "532",
      "is_in_favorites": 0,
      "is_in_folders": 0,
      "mi_name": "Daily",
      "mi_sequence": 30,
      "pct_variance_text": "from last day",
      "last_measurement_value_formatted": null,
      "last_measurement_time_formatted": null,
      "metric_last_moving_average_value_formatted": null,
      "last_updated_time": "2019-04-05 19:06:03",
      "total_forecast_amount_formatted": null,
      "last_activity_time": null,
      "last_annotation_text": null,
      "last_commentary_text": "Canada Manager: In Canada, we noticed that our Toronto store has maintained the same walk-in traffic as before, while at the same time noticing an increase in our website sales.",
      "element_dashboard_name": "Tableau Worldwide Sales Analysis",
      "element_dashboard_name_with_formatting": null,
      "is_empty_instance_ind": "N",
      "metric_tile_display_pct_variance": null,
      "report_rows": null,
      "last_display_generation_time": "2019-04-02 15:08:38",
      "last_file_updated_time": "",
      "last_modified": "unknown",
      "favorite_content": "wisdom of crowds",
      "alert_event_id": null,
      "last_alert_text": null,
      "last_alert_news_type": null,
      "is_alert_active": 0,
      "is_collaborative_alert_active": 0,
      "is_collaborative_annotation_active": 0,
      "is_annotation_active": 0,
      "is_commentary_active": 1,
      "last_notable_event_activity_time": null,
      "last_user_annotation_activity_time": null,
      "last_user_note_activity_time": null,
      "last_alert_event_activity_time": null,
      "reporting_tool_name": "Tableau",
      "remove_preview_link_ind": "N",
      "is_tech_editor": "N",
      "external_content_type_name": null,
      "enable_click_in_mobile_ind": "Y",
      "content_type": "Tableau",
      "global_total_view_count": 2,
      "has_access": "Y"
    },
  ],
  "folder_items": []
}

Fields Description

This description covers only the fields that contain information useful for App (Portal Page) development, the fields that are not covered are for internal use only.

Field Name	Value Type	Description
`folder_elements`	array	An array containing `folder_elements` data entries.
`user_dashboard_element_instance_id`	integer	A unique ID of the element record.
`user_id`	integer	The ID of the user who ran the API request.
`element_id`	integer	The ID of the element.
`segment_value_id`	integer	The dimension value of the element.
`favorite_id`	integer	The IDs of the element instances in favorites.
`category_id`	integer	The ID of the element's category.
`element_type`	string	The type of the element.
`in_dashboard_ind_flag`	string	Whether or not the element is displayed on the dashboard.
`is_expired`	string	Whether or not the element is expired.
`is_tech_editor`	string	Whether or not the user who ran the API request can edit the element. Takes value "Y" if the user can edit the element, "N" - if not.
`is_owned`	integer	Whether or not the element has an owner. Takes value "1" if the element has an owner, "0" - if not.
`topics`	array	An array of the element's tags' IDs.
`refresh_frequency_sec`	integer	The frequency of element refresh in seconds.
`enabled_ind`	string	Whether the Element is enabled (`«Y»`/`«N»`).
`description_markdown_ind`	string	Whether or not markdown is applied to the element's description. Takes value "Y" if markdown is enabled, "N" - if not.
`external_report_download_url_info`	object	Information about element download.
`certified_ind`	string	Whether or not the element is certified. Takes value "Y" if the element is certified, "N" - if not.
`certification_level_id`	integer	The ID of the certification level.
`last_certified_time`	string	The date and time of the last certification of the element.
`external_report_display`	string	If the element is an External Report, describes its display options.
`external_report_url`	string	The URL of the External Report or External Content in a native BI tool.
`certification_level_name`	string	The name of the certification level.
`certification_level_color`	string	The hex value of the certification level color.
`last_certified_by_name`	string	The name of the user who certified the element.
`last_certified_by_email`	string	The email of the user who certified the element.
`business_owner`	string	The name of the Element Business Owner.
`business_owner_email`	string	The email of the Element Business Owner.
`data_steward`	string	The name of the element's Data Steward.
`data_steward_email`	string	The email of the element's Data Steward.
`technical_owner`	string	The element's Technical Owner.
`technical_owner_email`	string	The email of the element's Technical Owner.
`data_source_name`	string	The name of the data source from which the element is populated.
`total_view_count`	integer	The engagement count of the element.
`in_favorites`	string	The IDs of favorites where the element is present.
`is_in_favorites`	integer	Whether or not the element is in favorites. Takes value "1" if the element is in favorites, "0" - if not.
`is_in_folders`	integer	Whether or not the element is in any folder. Takes value "1" if the element is in any folder, "0" - if not.
`metric_last_moving_average_value_formatted`	string	The last collected value of a metric.
`last_updated_time`	string	The date and time of the last element update.
`last_activity_time`	string	The date and time of the last element activity.
`last_annotation_text`	string	The text of the last annotation.
`last_commentary_text`	string	The text of the last comment.
`element_dashboard_name`	string	The name of the element.
`is_empty_instance_ind`	string	Whether or not the last instance of the report is empty.
`metric_tile_display_pct_variance`	string	The percentage ratio between the two latest metric values.
`favorite_content`	string	The type of favorite content.
`content_type_alias`	string	Human-readable alias of the content type. Supported values: `metric` `report` External Report’s source BI tool name `other`
`reporting_tool_name`	string	If the element is an External Report, displays the name of the BI tool from which the element is populated.
`external_content_type_name`	string	If the element is an External Content, describes its type.
`enable_click_in_mobile_ind`	string	If the element is an External Report or External Content, defines whether or not the "Enable click-through" option is activated for its content type.
`content_type`	string	The type of the content.
`global_total_view_count`	integer	The engagement count of the element.
`has_access`	string	Whether or not the user who ran the API request has access to the element.

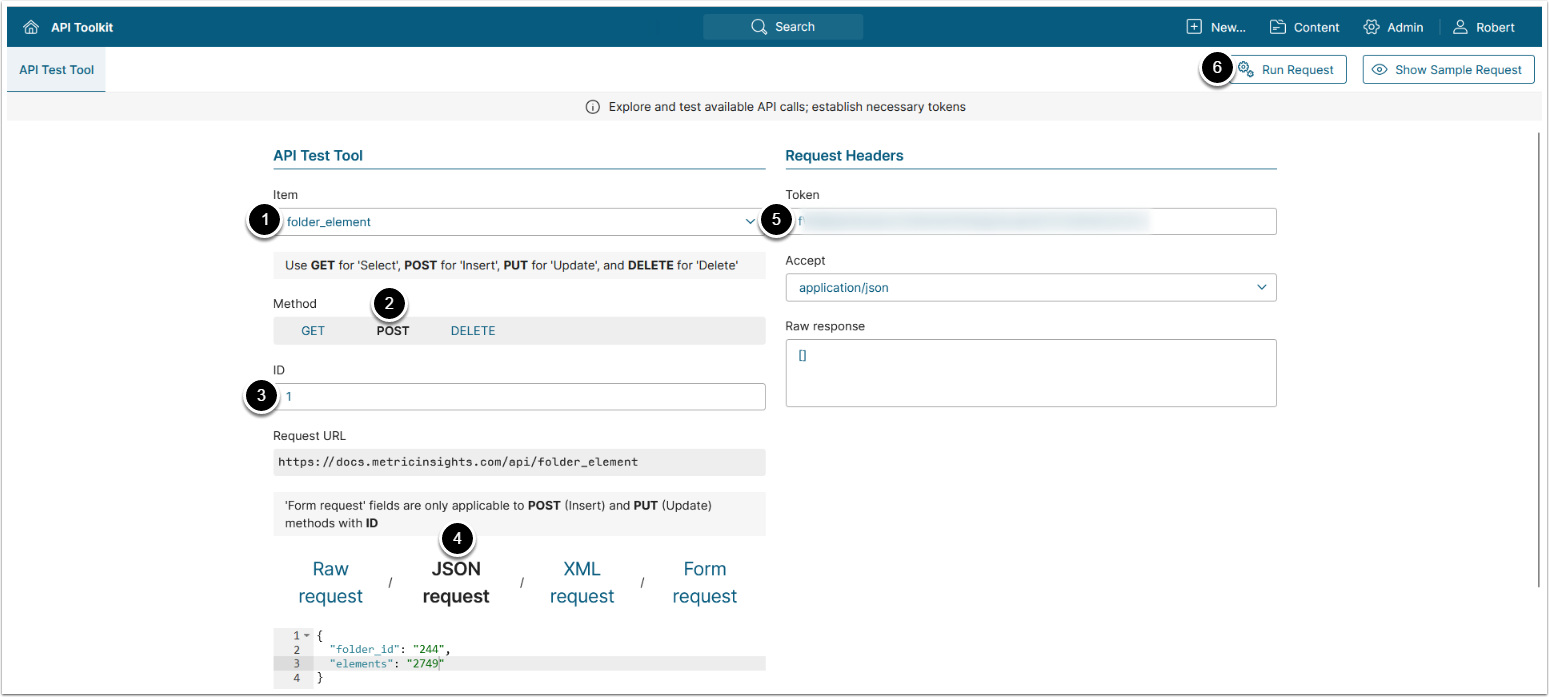

3.2. Add Element to Folder

Item: folder_element
Methods: POST
Enter any number
Select JSON request and enter JSON providing the needed values for the following parameters:
- folder_id: ID of the Folder.
- elements: ID of the Element that needs to be added to the Folder.
Enter an API Token
[Run request]

3.3. Bulk Add Folder Elements

Bulk adding Folder elements is not available in API toolkit but can be performed via direct API request to the /api/folder_element endpoint:

$.ajax({
    url: '/api/folder_element',
    type: 'POST',
    data: {
        folder_id: '<Folder ID>',
        elements:['<Element 1 ID>', '<Element 2 ID>']
    }
});

Assigning values to the following parameters:

folder_id: A string containing ID of the Folder
elements: An array of strings containing IDs of the elements that need to be added to the Folder

Example request:

$.ajax({
    url: '/api/folder_element',
    type: 'POST',
    data: {
        folder_id: "258",
        elements:['1700', '122483']
    }
});

3.4. Delete Element from Folder

Deleting an element from Folder is not available in API toolkit but can be performed via direct API request to the /api/folder_element endpoint:

$.ajax({
    url: '/api/folder_element',
    type: 'DELETE',
    data: {
        folder_id: '<Folder ID>',
        elements:['<Element 1 ID>', '<Element 2 ID>']
    }
});

Assigning values to the following parameters:

folder_id: A string containing ID of the Folder
elements:
- A single string containing ID of the element, if only one element needs to be deleted, or
- An array of strings containing IDs of the elements that need to be deleted from the Folder

Example request:

$.ajax({
    url: '/api/folder_element',
    type: 'DELETE',
    data: {
        folder_id: "258",
        elements:['1700', '122484']
    }
});

4. Code Snippets

4.1. Folders Elements

The following API call returns an array of all Folder elements from Folders available on the Homepage:

$.ajax({
    url: '/api/element?folder_items=Y',
    type: 'GET',
    dataType: 'json',
}).then(res=>{console.log(res.folderItems)})

The following API call returns an array of all Folder elements including the Folders hidden from the Homepage:

$.ajax({
  url: '/api/element?folder_items=Y&all_folders=Y',
  type: 'GET',
  dataType: 'json',
}).then(res=>{console.log(res.folderItems)})

Example Response

[
   {
     "folder_item_id": "3644700",
     "folder_id": "171",
     "element_id": "1247",
     "segment_value_id": "1",
     "display_order": "1"
   },
   {
     "folder_item_id": "3644699",
     "folder_id": "171",
     "element_id": "1247",
     "segment_value_id": "2596",
     "display_order": "2"
   },
]

Fields Description

Field Name	Value Type	Description
folder_item_id	string	The ID of the folder item unique for each element.
folder_id	string	The ID of the folder.
element_id	string	The ID of the element.
segment_value_id	string	The dimension value of the element.
display_order	string	The order in which the element is displayed in the Folder.

Folder API

1. Access Admin > System > API Toolkit

2. Configure Folders

2.1. Get All Folders

Example Response

Fields Description

2.2. Get a Specified Folder

Example Response

Fields Description

2.3. Create Folder

2.3.1. Create Sub-Folder

2.4. Update Folder

2.4.1. Update Sub-Folder

2.4.2. Copy Or Move Folder Or Sub-Folder

2.5. Delete Folder Or Sub-Folder

3. Configure Folder Elements

3.1. Get Folder Elements

Fields Description

3.2. Add Element to Folder

3.3. Bulk Add Folder Elements

3.4. Delete Element from Folder

4. Code Snippets

4.1. Folders Elements

Example Response

Fields Description

Topics

Last Updated

Other Resources

Heading anchor 1. Access Admin > System > API Toolkit

Heading anchor 2. Configure Folders

Heading anchor 2.1. Get All Folders

Heading anchor Example Response

Heading anchor Fields Description

Heading anchor 2.2. Get a Specified Folder

Heading anchor Example Response

Heading anchor Fields Description

Heading anchor 2.3. Create Folder

Heading anchor 2.3.1. Create Sub-Folder

Heading anchor 2.4. Update Folder

Heading anchor 2.4.1. Update Sub-Folder

Heading anchor 2.4.2. Copy Or Move Folder Or Sub-Folder

Heading anchor 2.5. Delete Folder Or Sub-Folder

Heading anchor 3. Configure Folder Elements

Heading anchor 3.1. Get Folder Elements

Heading anchor Fields Description

Heading anchor 3.2. Add Element to Folder

Heading anchor 3.3. Bulk Add Folder Elements

Heading anchor 3.4. Delete Element from Folder

Heading anchor 4. Code Snippets

Heading anchor 4.1. Folders Elements

Heading anchor Example Response

Heading anchor Fields Description

Topics

Last Updated

Other Resources

1. Access Admin > System > API Toolkit

2. Configure Folders

2.1. Get All Folders

Example Response

Fields Description

2.2. Get a Specified Folder

Example Response

Fields Description

2.3. Create Folder

2.3.1. Create Sub-Folder

2.4. Update Folder

2.4.1. Update Sub-Folder

2.4.2. Copy Or Move Folder Or Sub-Folder

2.5. Delete Folder Or Sub-Folder

3. Configure Folder Elements

3.1. Get Folder Elements

Fields Description

3.2. Add Element to Folder

3.3. Bulk Add Folder Elements

3.4. Delete Element from Folder

4. Code Snippets

4.1. Folders Elements

Example Response

Fields Description
