Dimension Access API (v7.2.0+)

This article describes the API endpoints used to view and manage the access that Users and Groups are granted to Dimensions and Dimension Values. Access to a Dimension can be granted directly to a User or indirectly via Group membership, and is governed by a Scope of Access that determines which Dimension Values are accessible. The following endpoints are covered:

  • /api/dimension/access: Returns the Groups and Users that have access to a Dimension (and to specific Dimension Values), identifying their edit access and scope of access  granted directly or via Group membership.
  • /api/group_dimension: View, grant, modify, and revoke a Group's access to a Dimension.
  • /api/group_dimension_value: View, grant, and revoke a Group's access to a specific Dimension Value.
  • /api/user_dimension: View, grant, modify, and revoke a User's access to a Dimension.
  • /api/user_dimension_value: View, grant, and revoke a User's access to a specific Dimension Value.

Scope of Access determines which values of a Dimension a Group or User can see:

  • All Dimension Values: Access to every value of the Dimension.
  • Specific Dimension Values: Access only to the values explicitly granted (via the group_dimension_value and user_dimension_value endpoints).
  • Inherited from Parent: Value access is inherited from the parent Dimension. Available only for Dimensions that have a parent Dimension and do not use "user map" security.

Prerequisites:

NOTES:

  • Only Admin Users and Power Users with edit access to the Dimension can execute these API calls.

Table of Contents

  1. Access Admin > System > API Toolkit
  2. Retrieve Users and Groups with Access to Dimension
  3. Configure Group_Dimension Associations
    1. Retrieve Groups With Access to Dimension
    2. Grant Group Access to Dimension
    3. Modify Group Access to Dimension
    4. Remove Group Access from Dimension
  4. Configure Group_Dimension_Value Associations
    1. Retrieve Groups With Access to Dimension Value
    2. Grant Group Access to Dimension Value
    3. Remove Group Access from Dimension Value
  5. Configure User_Dimension Associations
    1. Retrieve Users With Access to Dimension
    2. Grant User Access to Dimension
    3. Modify User Access to Dimension
    4. Remove User Access from Dimension
  6. Configure User_Dimension_Value Associations
    1. Retrieve Users With Access to Dimension Value
    2. Grant User Access to Dimension Value
    3. Remove User Access from Dimension Value

1. Access Admin > System > API Toolkit

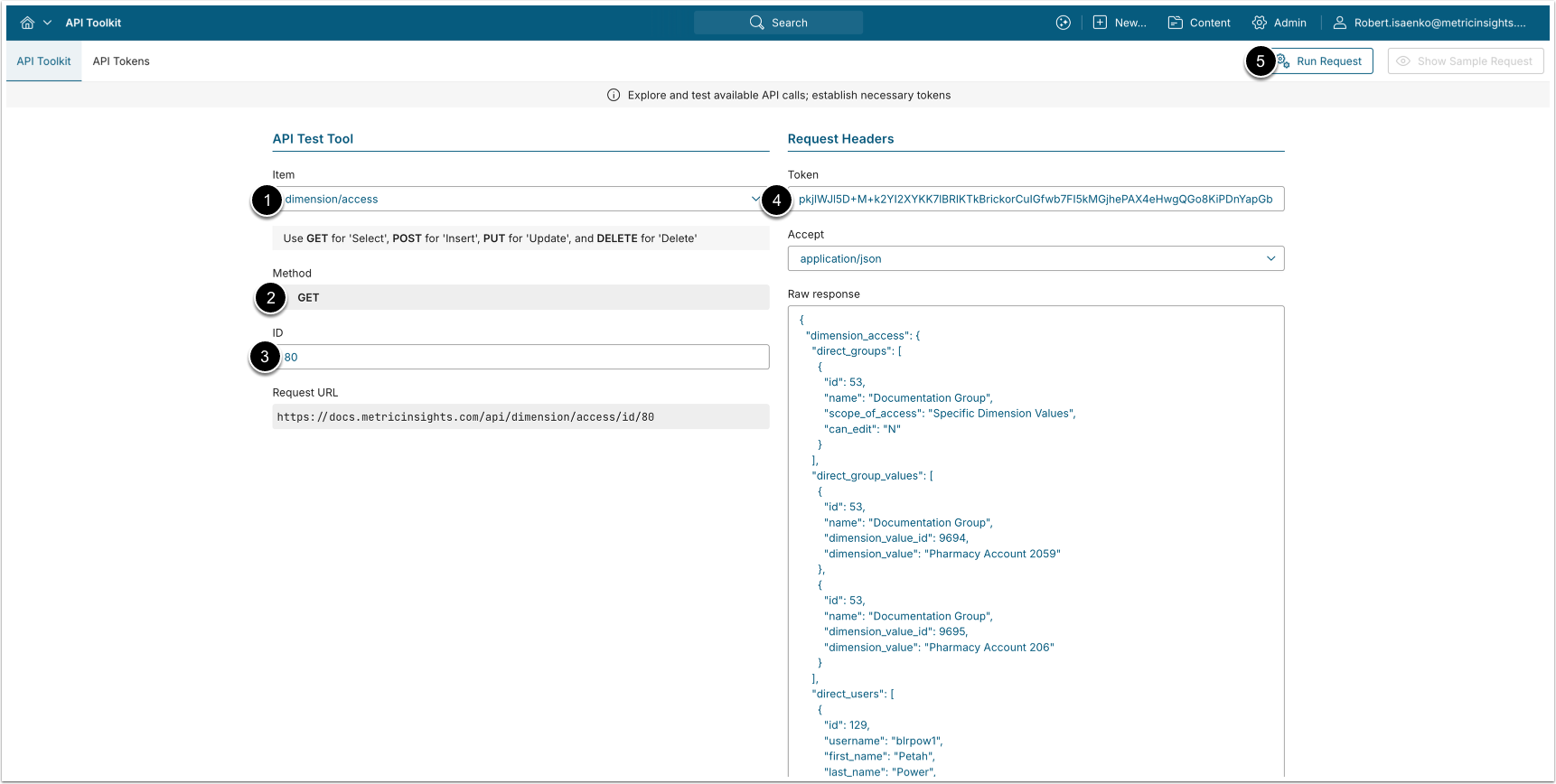

2. Retrieve Users and Groups with Access to Dimension

A GET request to /api/dimension/access/id/<id> returns the Groups and Users with access to the specified Dimension. The response identifies Groups and Users with access to the Dimension (with their scope of access and edit access), Groups and Users assigned to specific Dimension Values, and all Users with access (directly or via Group), excluding Admins and members of an "All Access" Group.

  1. Item: dimension/access
  2. Method: GET
  3. ID: Enter the ID of the Dimension.
  4. Enter an API Token.
  5. [Run request]

Example Response

{
  "dimension_access": {
    "direct_groups": [
      {
        "id": 53,
        "name": "Sales Group",
        "scope_of_access": "All Dimension Values",
        "can_edit": "Y"
      }
    ],
    "direct_group_values": [
      {
        "id": 60,
        "name": "Regional Managers",
        "dimension_value_id": 1204,
        "dimension_value": "EMEA"
      }
    ],
    "direct_users": [
      {
        "id": 168,
        "username": "test.user",
        "first_name": "Test",
        "last_name": "User",
        "scope_of_access": "Specific Dimension Values",
        "can_edit": "N"
      }
    ],
    "direct_user_values": [
      {
        "id": 168,
        "username": "test.user",
        "first_name": "Test",
        "last_name": "User",
        "dimension_value_id": 1205,
        "dimension_value": "APAC"
      }
    ],
    "all_users": [
      {
        "id": 193,
        "username": "john.powers",
        "first_name": "John",
        "last_name": "Powers",
        "can_edit": "Y",
        "scope_of_access": "All Dimension Values",
        "sources": [
          {
            "source": "group",
            "id": 53,
            "name": "Sales Group"
          }
        ]
      }
    ]
  }
}

Fields Description

Field NameValue TypeDescription
dimension_access
objectContains the Groups and Users with access to the Dimension.
direct_groups
arrayGroups with access to the Dimension.
direct_group_values
arrayGroups directly assigned access to specific Dimension Values.
direct_users
arrayUsers with direct access to the Dimension.
direct_user_values
arrayUsers directly assigned access to specific Dimension Values.
all_users
arrayAll Users with access to the Dimension (directly or via Group), excluding Admins and members of an "All Access" Group.
Below are the Group object fields from the direct_groups and direct_group_values arrays:
id
integerThe ID of the Group.
name
stringThe name of the Group.
scope_of_access
stringThe Group's scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values") (direct_groups only)
can_edit
stringWhether the Group's members can edit the Dimension. ("Y"/"N") (direct_groups only)
dimension_value_id
integerThe ID of the specific Dimension Value. (direct_group_values only)
dimension_value
stringThe display name of the Dimension Value. (direct_group_values only)
Below are the User object fields from the direct_users, direct_user_values, and all_users arrays:
id
integerUser ID.
username
stringUsername.
first_name
stringUser's first name.
last_name
stringUser's last name.
scope_of_access
stringThe User's scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values") (direct_users, all_users)
can_edit
stringWhether the User can edit the Dimension. ("Y", "N", or "N/A") (direct_users, all_users)
dimension_value_id
integerThe ID of the specific Dimension Value. (direct_user_values only)
dimension_value
stringThe display name of the Dimension Value. (direct_user_values only)
sources
arraySource(s) of the User's access. (all_users only)
Below are the source object fields from the sources array:
source
stringSource of access. ("direct" or "group")
id
integerThe ID of the Group through which the User has access. For directly assigned Users, the value is 0.
name
stringThe name of the Group through which the User has access. For directly assigned Users, the value is an empty string.

3. Configure Group_Dimension Associations

The /api/group_dimension endpoint retrieves which Groups have access to which Dimensions, and allows granting, modifying, and removing that access. Each data entry has a unique ID and represents a single Group-to-Dimension mapping.

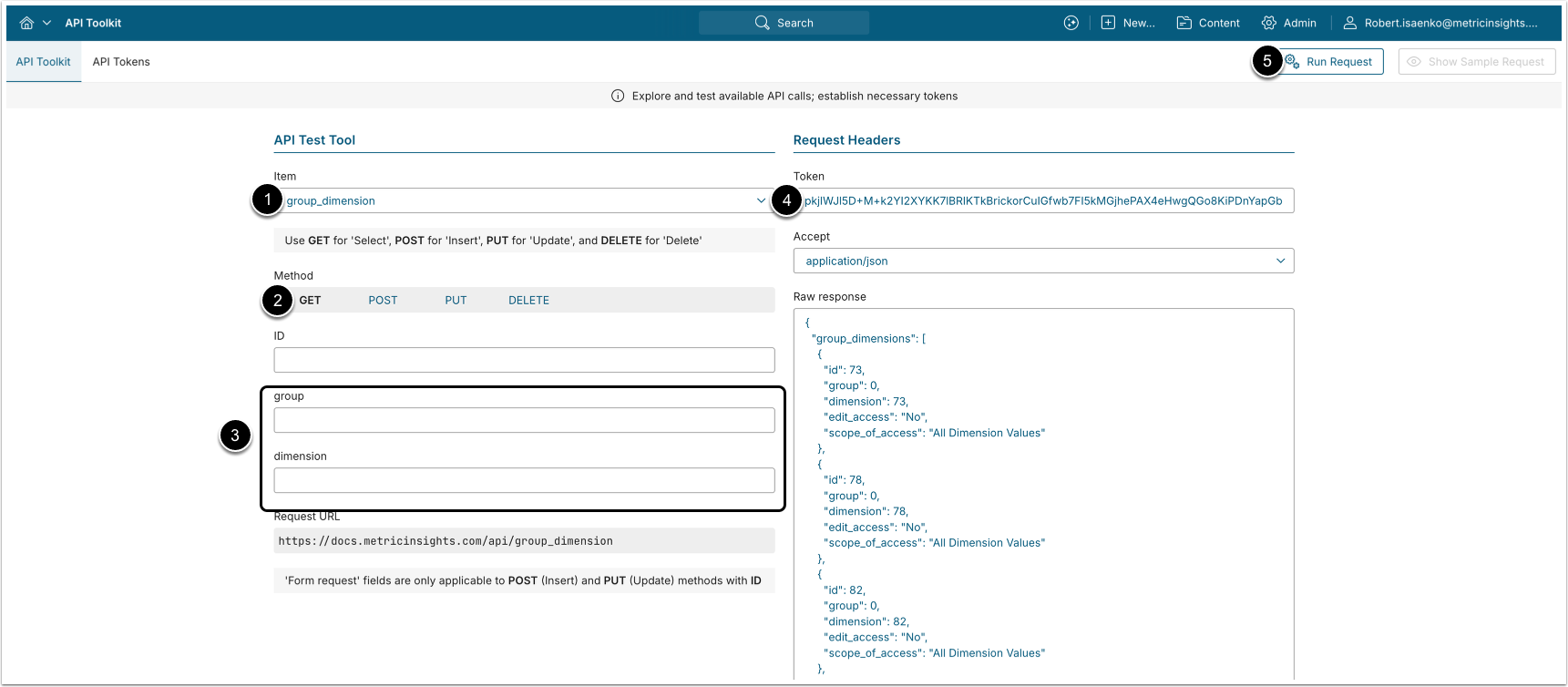

3.1. Retrieve Groups With Access to Dimension

  • A GET request to /api/group_dimension returns all Group-to-Dimension access mappings.
  • A GET request to /api/group_dimension/id/<id> returns a single Group-to-Dimension mapping by ID.
  1. Item: group_dimension
  2. Method: GET
  3. Filter the results with the following parameters:
    • group: The ID of the Group.
    • dimension: The ID of the Dimension.
  4. Enter an API Token.
  5. [Run request]

Example Response

{
  "group_dimensions": [
    {
      "id": 1,
      "group": 2,
      "dimension": 53,
      "edit_access": "Yes",
      "scope_of_access": "All Dimension Values"
    },
    {
      "id": 12,
      "group": 4,
      "dimension": 204,
      "edit_access": "No",
      "scope_of_access": "Specific Dimension Values"
    },
    {
      "id": 8,
      "group": 14,
      "dimension": 78,
      "edit_access": "No",
      "scope_of_access": "Inherited from Parent"
    }
  ]
}

Fields Description

Field NameValue TypeDescription
id
integerThe ID of the group_dimension data entry.
group
integerThe ID of the Group.
dimension
integerThe ID of the Dimension.
edit_access
stringWhether the Group's members can edit the Dimension. ("Yes"/"No")
scope_of_access
stringThe Group's scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values")

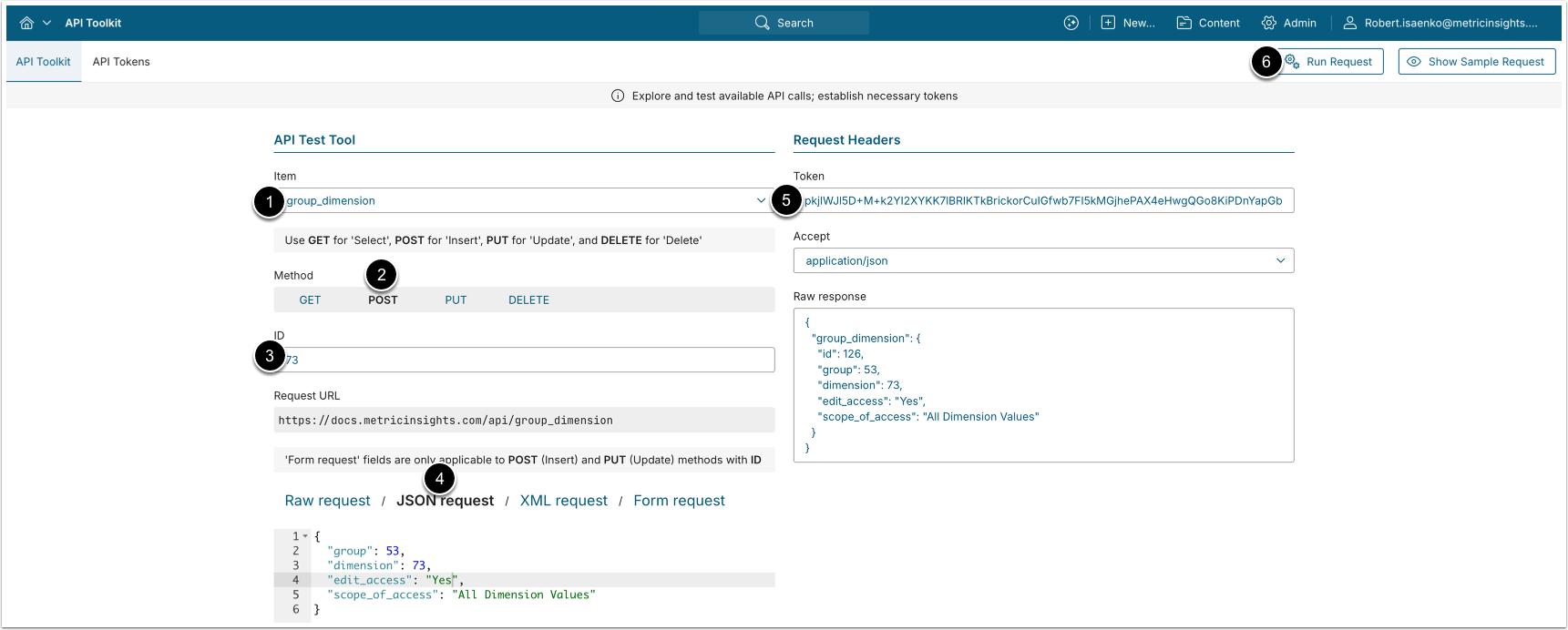

3.2. Grant Group Access to Dimension

NOTES:

  • A Group cannot be granted access to a Dimension it already has access to. To change a Group's access, use a PUT request (see the Modify Group Access to Dimension section).
  • The scope "Inherited from Parent" can be used only for Dimensions that have a parent Dimension and do not use "user map" security

A POST request to /api/group_dimension grants a Group access to the Dimension.

  1. Item: group_dimension
  2. Method: POST
  3. Enter the ID of an existing Group-to-Dimension mapping.
  4. Choose JSON request and provide the following values:
    • group: The ID of the Group to grant access to.
    • dimension: The ID of the Dimension.
    • edit_access: Whether the Group's members can edit the Dimension. ("Y"/"N", optional, default "N".)
    • scope_of_access: The scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values"; optional, default "Specific Dimension Values".)
  5. Enter an API Token.
  6. [Run request]

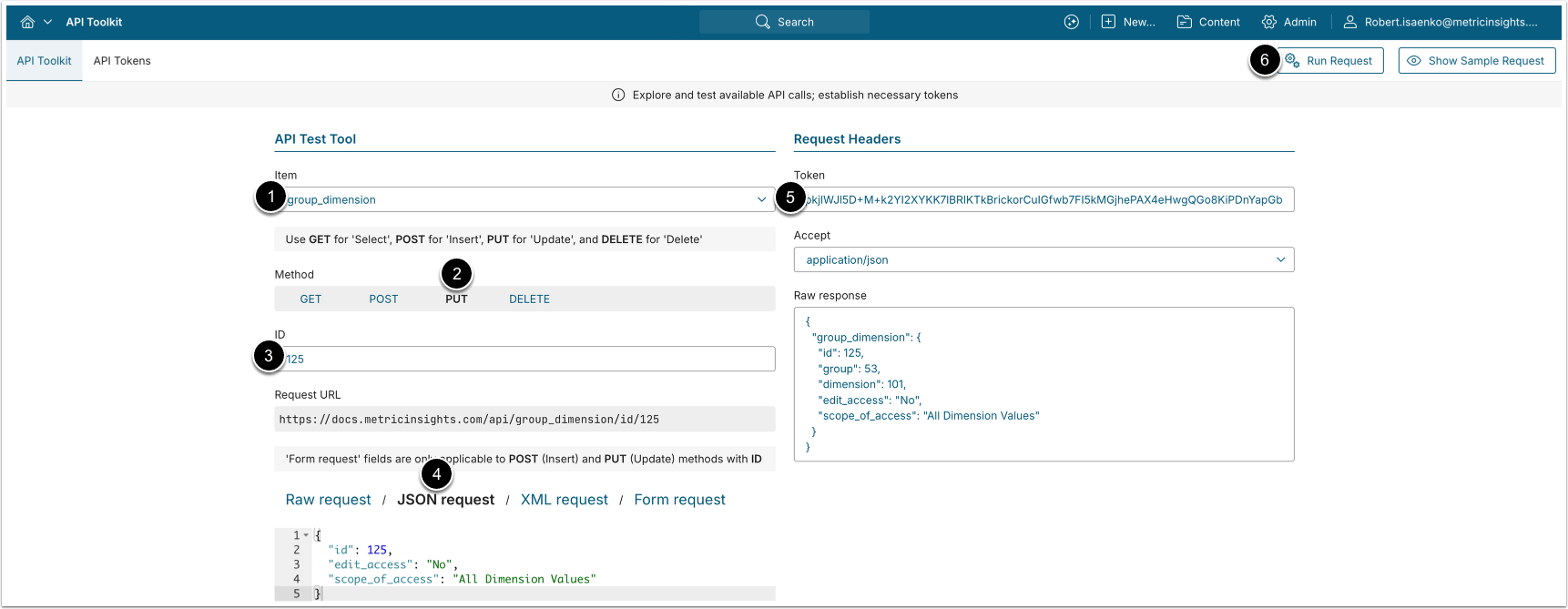

3.3. Modify Group Access to Dimension

A PUT request to /api/group_dimension/id/<id> with body {"edit_access": "<Y/N>", "scope_of_access": "<scope>"} modifies a Group's access to the Dimension. The group and dimension of an existing mapping cannot be changed.

  1. Item: group_dimension
  2. Method: PUT
  3. Enter the ID of the Group-to-Dimension mapping to modify.
  4. Choose JSON request and provide the following values:
    • edit_access: Whether the Group's members can edit the Dimension. ("Y"/"N", optional, default "N".)
    • scope_of_access: The scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values"; optional, default "Specific Dimension Values".)
  5. Enter an API Token.
  6. [Run request]

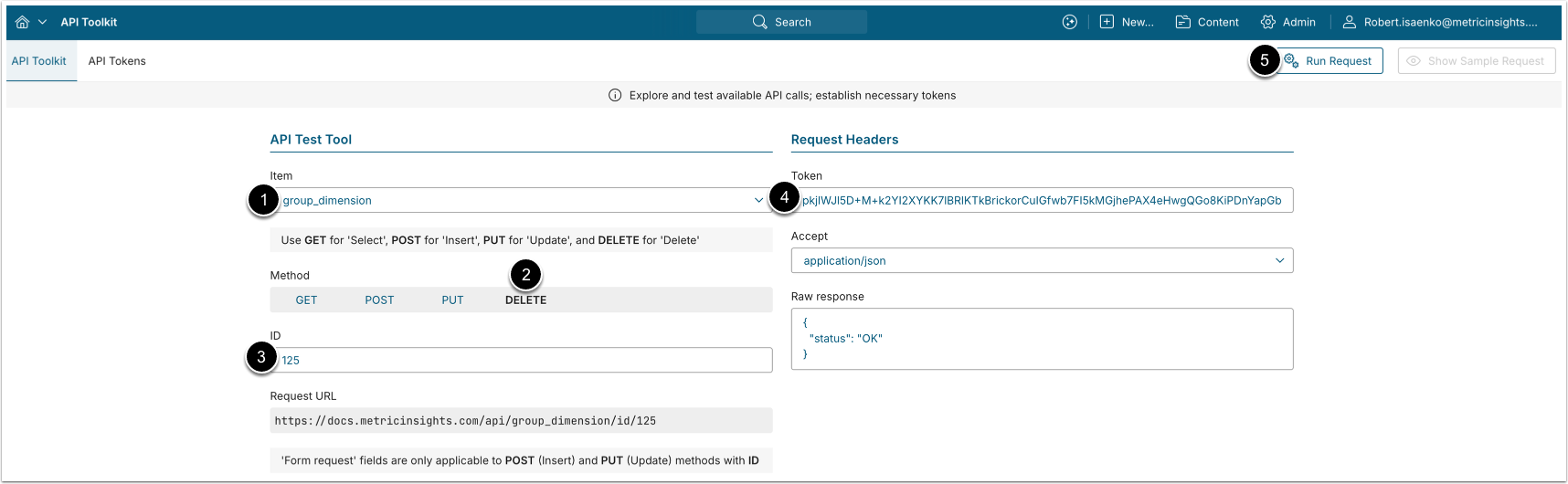

3.4. Remove Group Access from Dimension

A DELETE request to /api/group_dimension/id/<id> removes a Group's access to the Dimension.

  1. Item: group_dimension
  2. Method: DELETE
  3. Enter the ID of the group_dimension data entry to be deleted.
  4. Enter an API Token.
  5. [Run request]

4. Configure Group_Dimension_Value Associations

The /api/group_dimension_value endpoint retrieves which specific Dimension Values a Group can access, and allows granting and removing that access. Each data entry has a unique ID and represents a single Group-to-Dimension-Value mapping. These mappings apply when the Group's scope of access to the Dimension is "Specific Dimension Values".

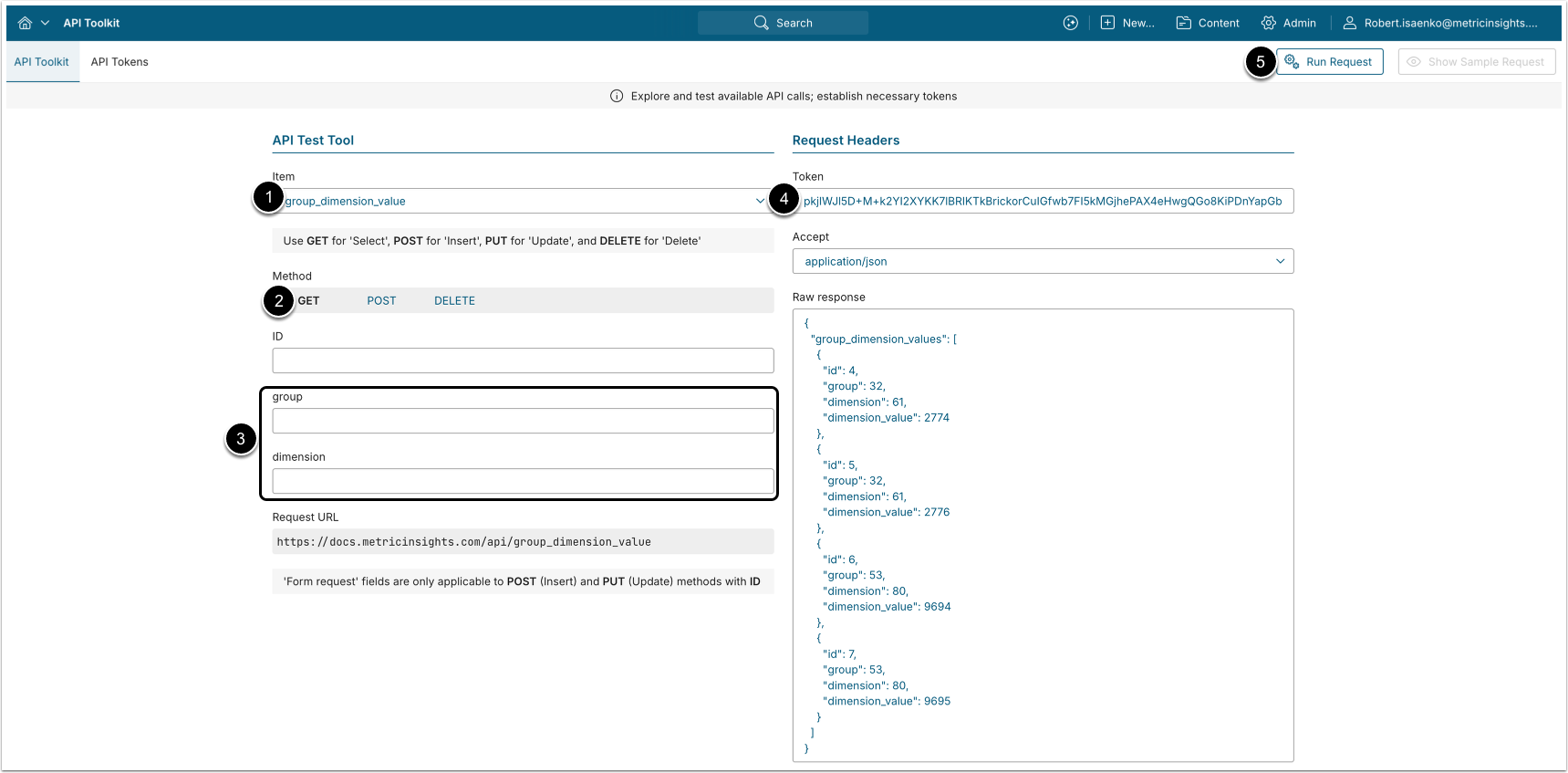

4.1. Retrieve Groups With Access to Dimension Value

  • A GET request to /api/group_dimension_value returns all Group-to-Dimension-Value access mappings.
  • A GET request to /api/group_dimension_value/id/<id> returns a single mapping by ID.
  1. Item: group_dimension_value
  2. Method: GET
  3. Filter the results with the following parameters:
    • group: The ID of the Group.
    • dimension: The ID of the Dimension.
  4. Enter an API Token.
  5. [Run request]

Example Response

{
  "group_dimension_values": [
    {
      "id": 1,
      "group": 2,
      "dimension": 53,
      "dimension_value": 1204
    },
    {
      "id": 5,
      "group": 4,
      "dimension": 204,
      "dimension_value": 980
    }
  ]
}

Fields Description

Field NameValue TypeDescription
id
integerThe ID of the group_dimension_value data entry.
group
integerThe ID of the Group.
dimension
integerThe ID of the Dimension.
dimension_value
integerThe ID of the Dimension Value.

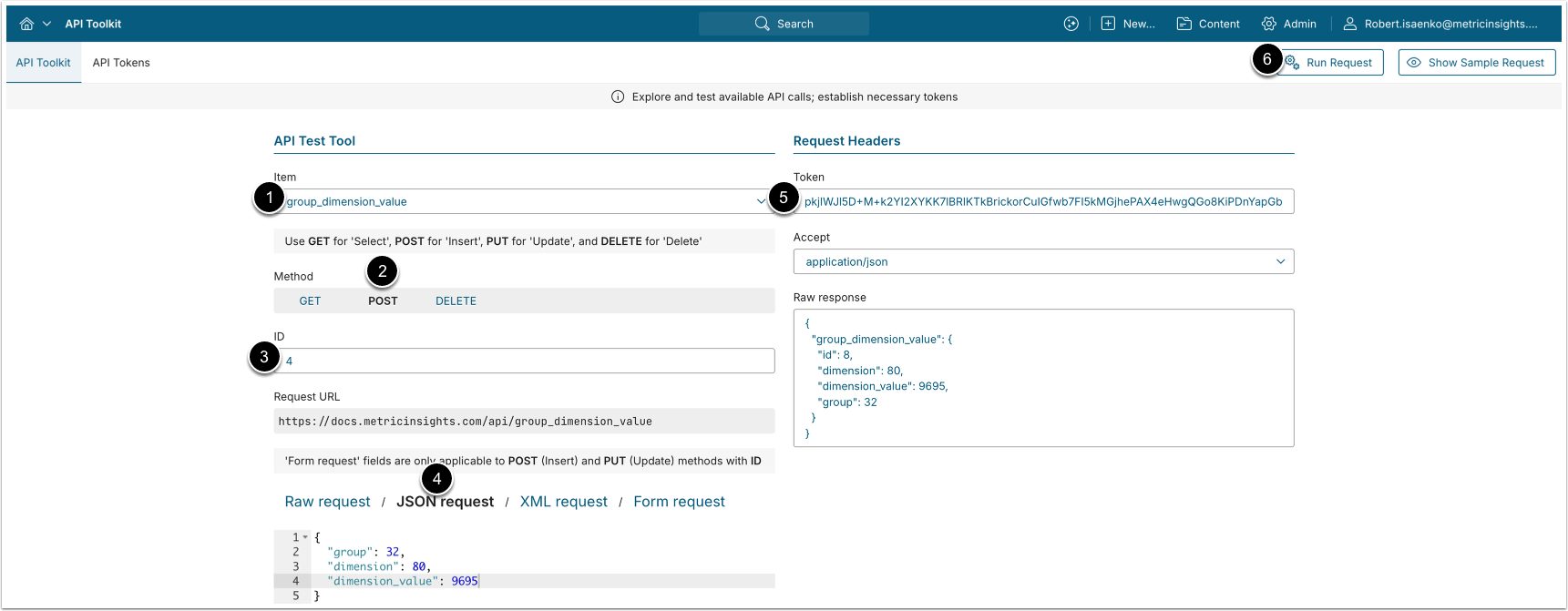

4.2. Grant Group Access to Dimension Value

NOTES:

  • A Group cannot be granted access to a Dimension Value it already has.
  • A specific Dimension Value cannot be added when the Group's scope of access to the Dimension is "All Dimension Values" or "Inherited from Parent". If the Group has no mapping to the Dimension yet, one is created automatically with the "Specific Dimension Values" scope.

A POST request to /api/group_dimension_value grants a Group access to a specific Dimension Value.

  1. Item: group_dimension_value
  2. Method: POST
  3. Enter the ID of an existing group_dimension_value data entry.
  4. Choose JSON request and provide the following values:
    • group: The ID of the Group.
    • dimension: The ID of the Dimension.
    • dimension_value: The ID of the Dimension Value to grant access to.
  5. Enter an API Token.
  6. [Run request]

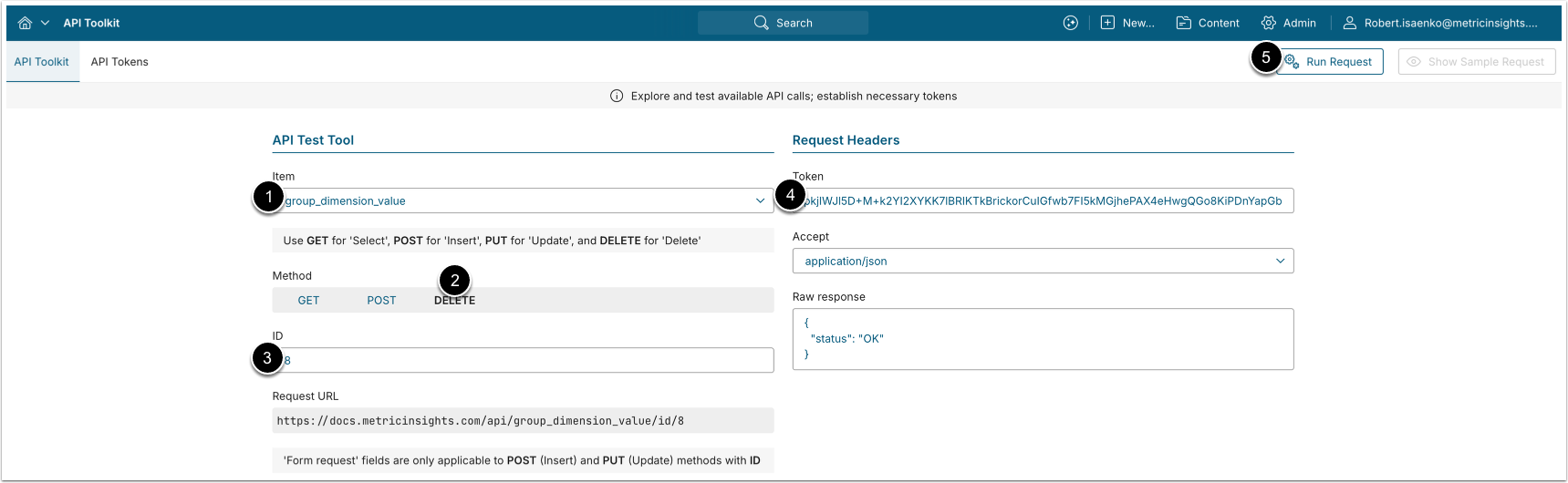

4.3. Remove Group Access from Dimension Value

A DELETE request to /api/group_dimension_value/id/<id> removes a Group's access to the Dimension Value.

  1. Item: group_dimension_value
  2. Method: DELETE
  3. Enter the ID of the group_dimension_value data entry to be deleted.
  4. Enter an API Token.
  5. [Run request]

5. Configure User_Dimension Associations

The /api/user_dimension endpoint retrieves which Users have access to which Dimensions, and allows granting, modifying, and removing that access. Each data entry has a unique ID and represents a single User-to-Dimension mapping.

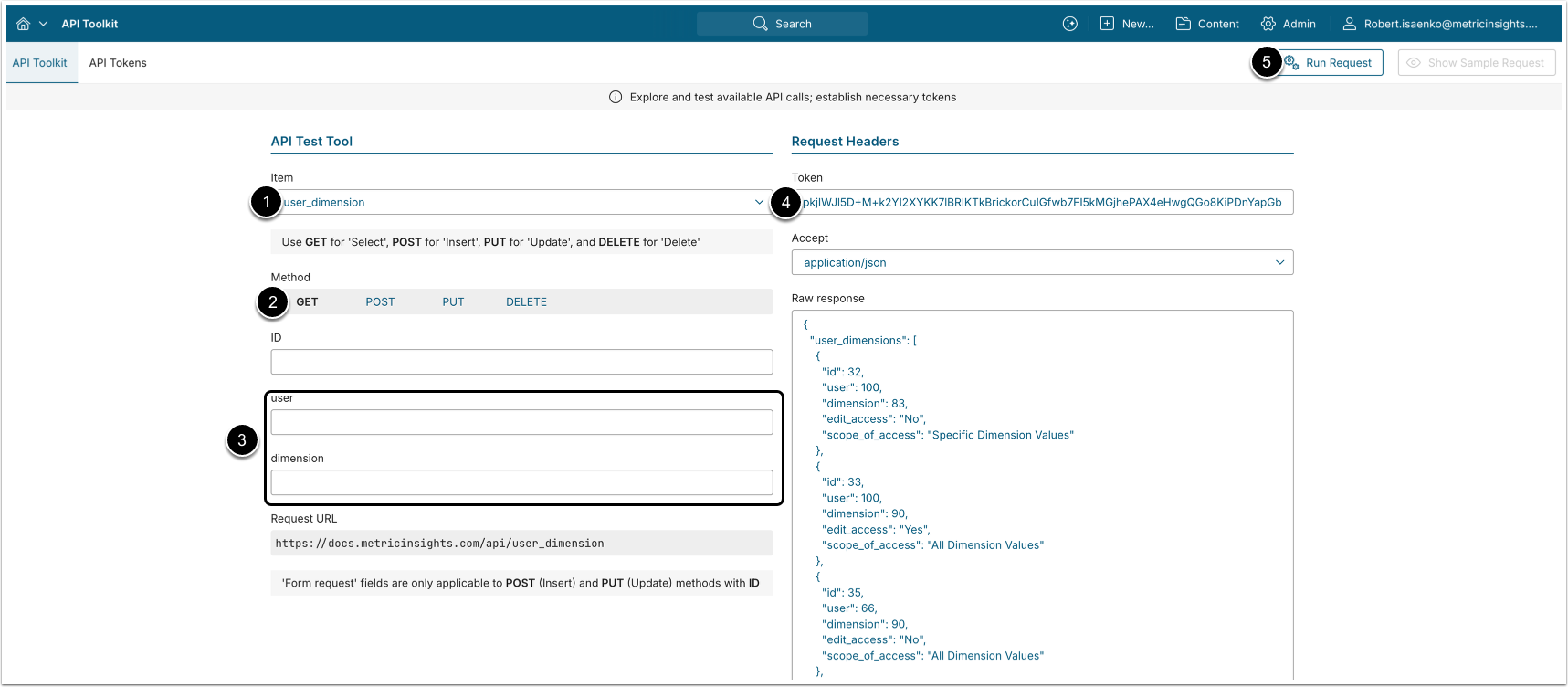

5.1. Retrieve Users With Access to Dimension

  • A GET request to /api/user_dimension returns all User-to-Dimension access mappings.
  • A GET request to /api/user_dimension/id/<id> returns a single User-to-Dimension mapping by ID.
  1. Item: user_dimension
  2. Method: GET
  3. Filter the results with the following parameters:
    • user: The ID of the User.
    • dimension: The ID of the Dimension.
  4. Enter an API Token.
  5. [Run request]

Example Response

{
  "user_dimensions": [
    {
      "id": 3,
      "user": 11,
      "dimension": 53,
      "edit_access": "No",
      "scope_of_access": "Specific Dimension Values"
    },
    {
      "id": 9,
      "user": 27,
      "dimension": 78,
      "edit_access": "Yes",
      "scope_of_access": "All Dimension Values"
    }
  ]
}

Fields Description

Field NameValue TypeDescription
id
integerThe ID of the user_dimension data entry.
user
integerThe ID of the User.
dimension
integerThe ID of the Dimension.
edit_access
stringWhether the User can edit the Dimension. ("Yes"/"No")
scope_of_access
stringThe User's scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values")

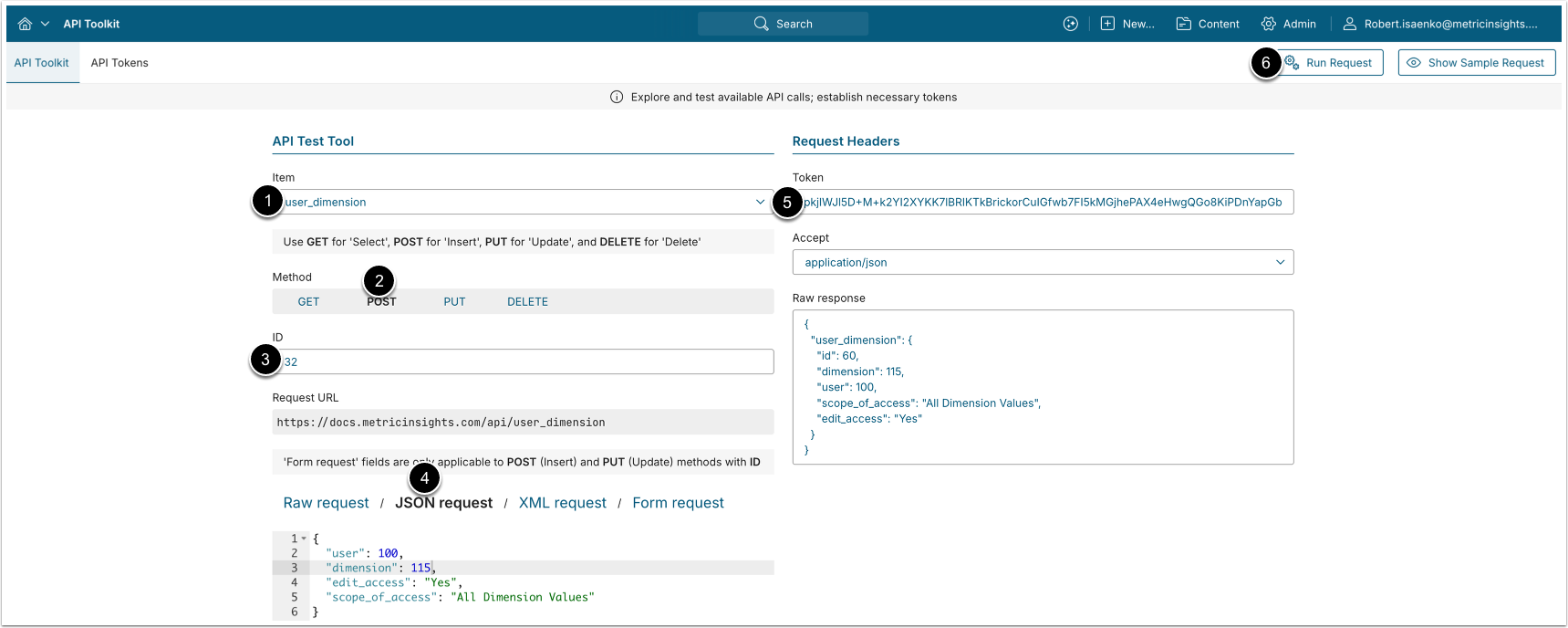

5.2. Grant User Access to Dimension

NOTES:

  • A User cannot be granted access to a Dimension they already have access to. To change a User's access, use a PUT request (see the Modify User Access to Dimension section).
  • The scope "Inherited from Parent" can be used only for Dimensions that have a parent Dimension and do not use "user map" security.

A POST request to /api/user_dimension grants a User access to the Dimension.

  1. Item: user_dimension
  2. Method: POST
  3. Enter the ID of an existing User-to-Dimension mapping.
  4. Choose JSON request and provide the following values:
    • user: The ID of the User to grant access to.
    • dimension: The ID of the Dimension.
    • edit_access: Whether the User can edit the Dimension. ("Y"/"N", optional, default "N".)
    • scope_of_access: The scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values"; optional, default "Specific Dimension Values".)
  5. Enter an API Token.
  6. [Run request]

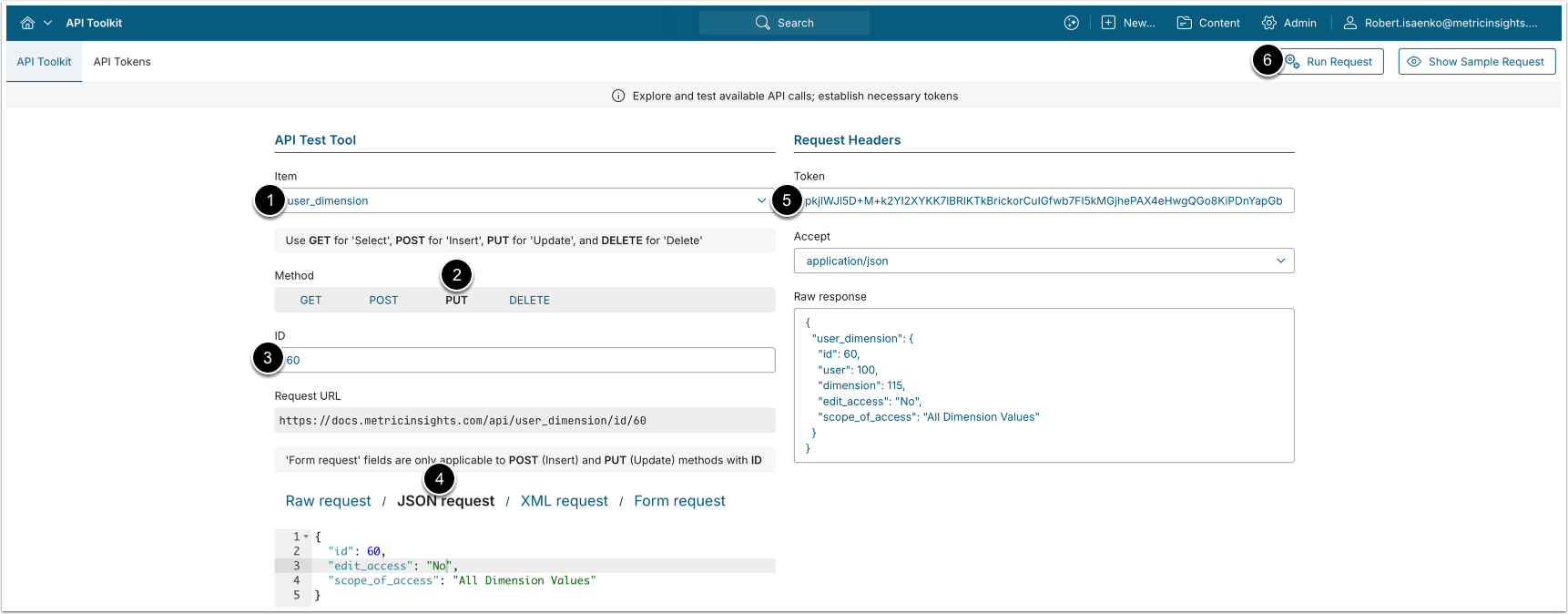

5.3. Modify User Access to Dimension

A PUT request to /api/user_dimension/id/<id> with body {"edit_access": "<Y/N>", "scope_of_access": "<scope>"} modifies a User's access to the Dimension. The user and dimension of an existing mapping cannot be changed.

  1. Item: user_dimension
  2. Method: PUT
  3. Enter the ID of the User-to-Dimension mapping to modify.
  4. Choose JSON request and provide the following values:
    • edit_access: Whether the User can edit the Dimension. ("Y"/"N", optional, default "N".)
    • scope_of_access: The scope of access. ("Inherited from Parent", "All Dimension Values", or "Specific Dimension Values"; optional, default "Specific Dimension Values".)
  5. Enter an API Token.
  6. [Run request]

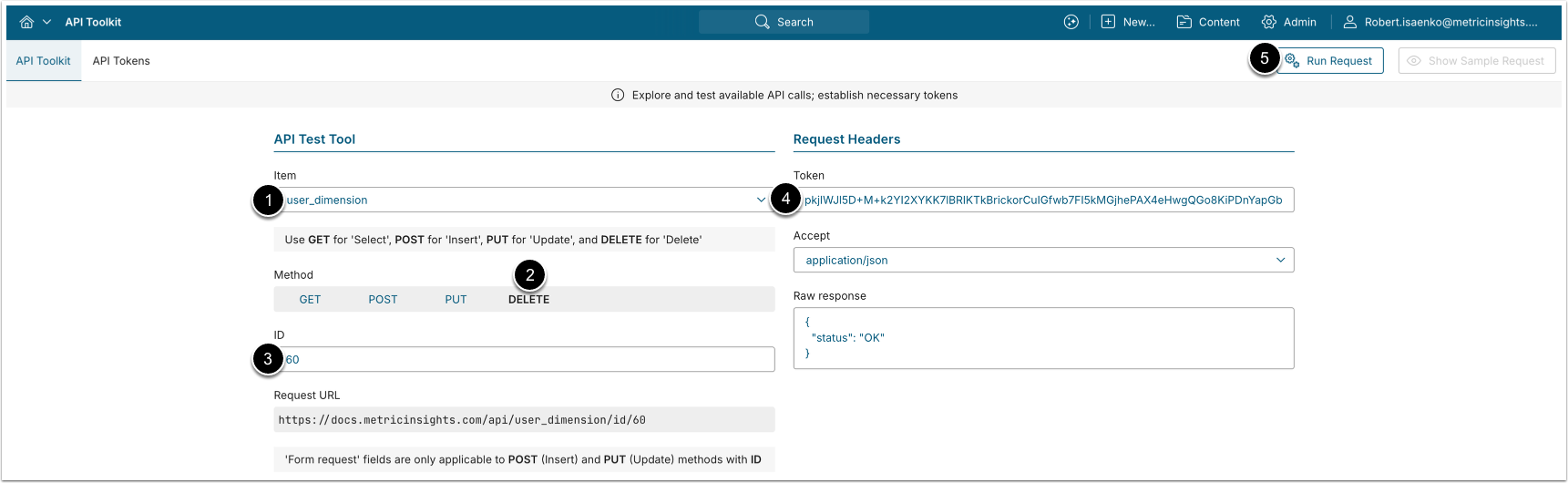

5.4. Remove User Access from Dimension

A DELETE request to /api/user_dimension/id/<id> removes a User's access to the Dimension.

  1. Item: user_dimension
  2. Method: DELETE
  3. Enter the ID of the user_dimension data entry to be deleted.
  4. Enter an API Token.
  5. [Run request]

6. Configure User_Dimension_Value Associations

The /api/user_dimension_value endpoint retrieves which specific Dimension Values a User can access, and allows granting and removing that access. Each data entry has a unique ID and represents a single User-to-Dimension-Value mapping. These mappings apply when the User's scope of access to the Dimension is "Specific Dimension Values".

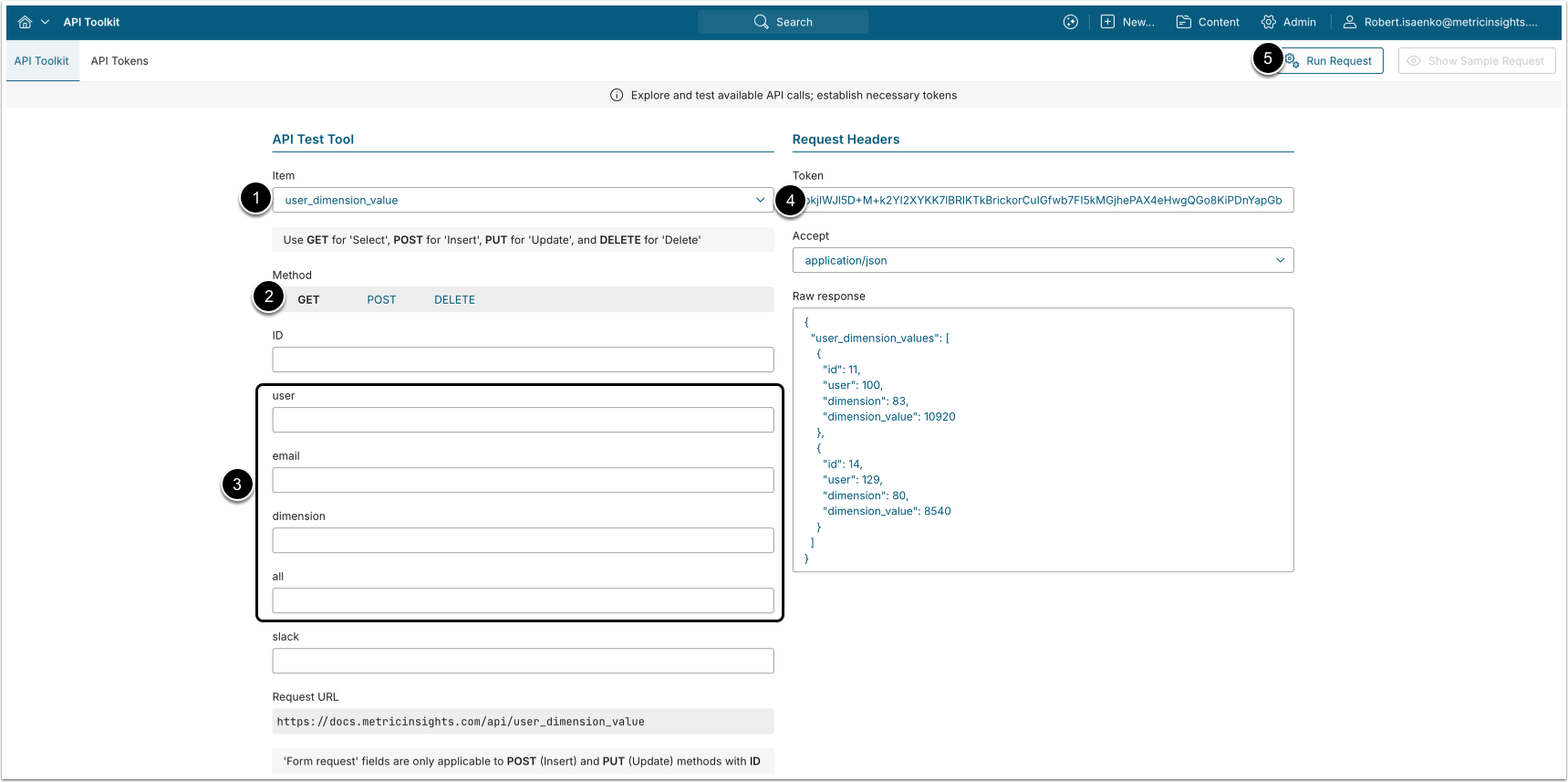

6.1. Retrieve Users With Access to Dimension Value

  • A GET request to /api/user_dimension_value returns all User-to-Dimension-Value access mappings.
  • A GET request to /api/user_dimension_value/id/<id> returns a single mapping by ID.
  1. Item: user_dimension_value
  2. Method: GET
  3. Filter the results with the following parameters:
    • user: The ID of the User.
    • email: The email of the User (an alternative to user).
    • dimension: The ID of the Dimension.
    • all: Return every Dimension Value the User can reach, including values granted via "All Dimension Values" and "Inherited from Parent" scopes, not only explicitly assigned values. ("Y"/"N", default "N".)
      • Only Admins can use this parameter; for non-Admins it is always treated as "N".
      • See the NOTES below for details on this parameter configuration.
  4. Enter an API Token.
  5. [Run request]

NOTES:

  • all="Y" changes the response. Records returned with all="Y" represent computed access rather than stored mappings, so the id field is omitted  each record contains only user, dimension, and dimension_value.
  • all="Y" requires user or email. Without one of them, the response is an empty array.
  • The dimension filter is ignored when all="Y": all accessible Dimension Values across all Dimensions are returned regardless of dimension.
  • For an Admin User, all="Y" returns every Dimension Value in the system.

Example Response

{
  "user_dimension_values": [
    {
      "id": 7,
      "user": 11,
      "dimension": 53,
      "dimension_value": 1205
    }
  ]
}

Fields Description

Field NameValue TypeDescription
id
integerThe ID of the user_dimension_value data entry.
user
integerThe ID of the User.
dimension
integerThe ID of the Dimension.
dimension_value
integerThe ID of the Dimension Value.

6.2. Grant User Access to Dimension Value

NOTES:

  • A User cannot be granted access to a Dimension Value they already have.
  • A specific Dimension Value cannot be added when the User's scope of access to the Dimension is "All Dimension Values" or "Inherited from Parent". If the User has no mapping to the Dimension yet, one is created automatically with the "Specific Dimension Values" scope.

A POST request to /api/user_dimension_value grants a User access to a specific Dimension Value.

  1. Item: user_dimension_value
  2. Method: POST
  3. Enter the ID of an existing user_dimension_value data entry.
  4. Choose JSON request and provide the following values:
    • user: The ID of the User.
    • dimension: The ID of the Dimension.
    • dimension_value: The ID of the Dimension Value to grant access to.
  5. Enter an API Token.
  6. [Run request]

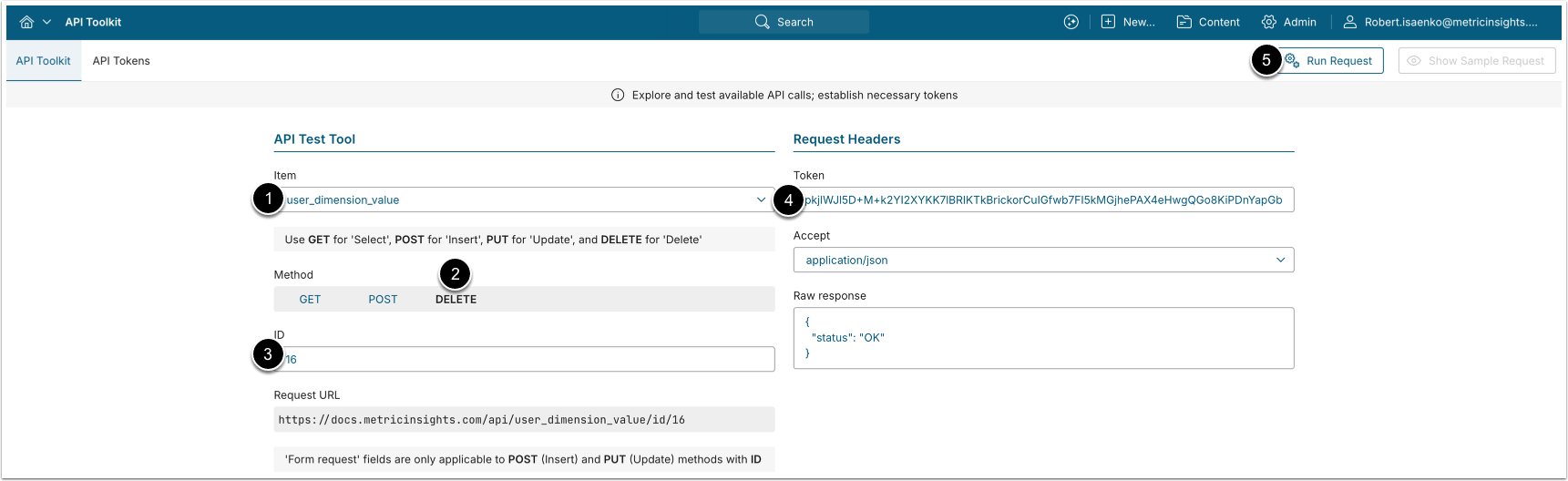

6.3. Remove User Access from Dimension Value

A DELETE request to /api/user_dimension_value/id/<id> removes a User's access to the Dimension Value.

  1. Item: user_dimension_value
  2. Method: DELETE
  3. Enter the ID of the user_dimension_value data entry to be deleted.
  4. Enter an API Token.
  5. [Run request]
